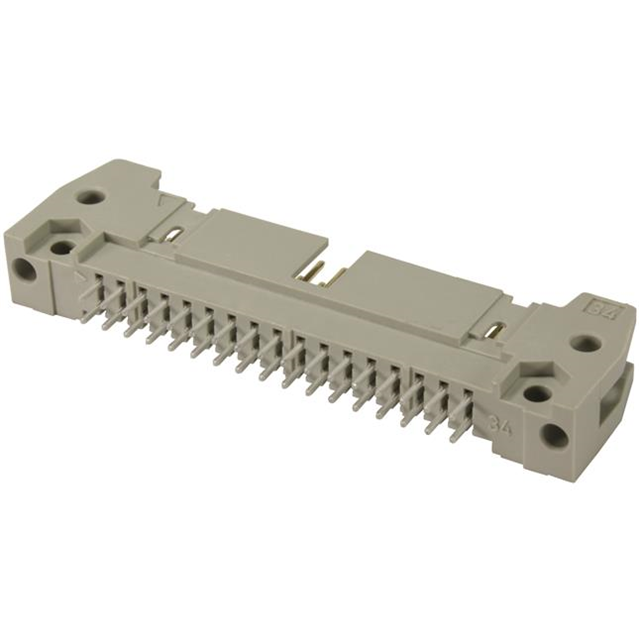

09185346922

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Number of Positions Loaded :

All

Number of Positions :

34

Option :

GENERAL PURPOSE

Factory Lead Time :

7 Weeks

Material Flammability Rating :

UL94 V-0

Polarization Key :

POLARIZED HOUSING

Number of Rows :

2

Rated Current (Signal) :

2A

Contact Finish - Mating :

NOT SPECIFIED

Mounting Type :

Through Hole

Termination :

Solder

Style :

Board to Cable/Wire

Series :

SEK

IEC Conformance :

yes

Mount :

Through Hole

Contact Material :

COPPER ALLOY

Number Of PCB Rows :

2

Number of Conductors :

ONE

Row Spacing - Mating :

0.100 (2.54mm)

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Operating Temperature :

-55°C~125°C

Reliability :

COMMERCIAL

Color :

Grey

Pbfree Code :

yes

Pitch - Mating :

0.100 2.54mm

MIL Conformance :

No

Feature :

Keying Slot, Mounting Flange

Contact Shape :

Square

Body Depth :

0.681 inch

Reference Standard :

UL

Length - Termination :

0.177 inch

Insulation Color :

Gray

Packaging :

Bulk

Fastening Type :

Push-Pull

HTS Code :

8536.69.40.40

RoHS Status :

ROHS3 Compliant

Mixed Contacts :

No

Contact Length - Post :

0.177 4.50mm

Shrouding :

Shrouded - 4 Wall

Mating Contact Pitch :

0.1 inch

Contact Type :

Male Pin

PCB Contact Pattern :

RECTANGULAR

Contact Finish - Post :

Tin

Contact Length - Mating :

0.240 6.10mm

DIN Conformance :

yes

ECCN Code :

EAR99

Filter Feature :

No

Overall Contact Length :

0.713 18.10mm

Connector Type :

Header

Insulation Height :

0.681 17.30mm

Body Breadth :

0.335 inch

Additional Feature :

STANDARDS: DIN EN 60603-13; IEC 60603-13, POLARIZED

UL Flammability Code :

94V-0

Moisture Sensitivity Level (MSL) :

1 (Unlimited)
