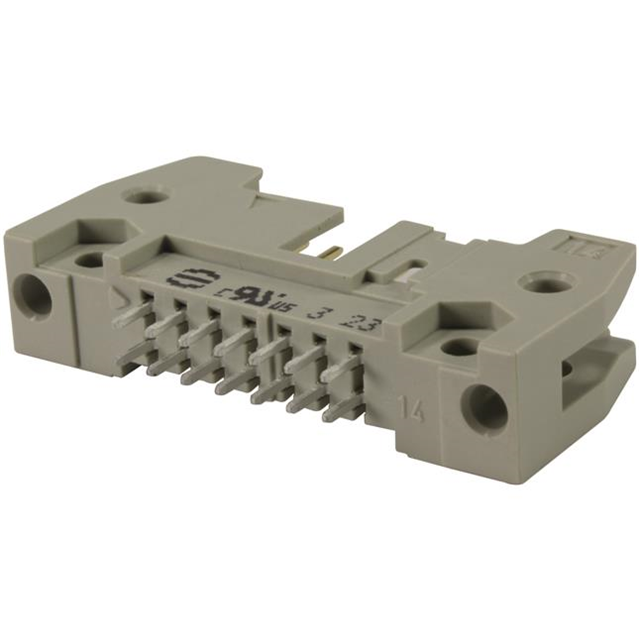

09185346912

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Connector Type :

Header

Insulation Resistance :

1000000000Ohm

Style :

Board to Cable/Wire

Number Of PCB Rows :

2

Polarization Key :

POLARIZED HOUSING

RoHS Status :

ROHS3 Compliant

Length :

62.8mm

Contact Length - Post :

0.177 4.50mm

Reliability :

COMMERCIAL

Number of Positions Loaded :

All

Number of Rows :

2

Rated Current (Signal) :

2A

Packaging :

Bulk

Option :

GENERAL PURPOSE

Contact Shape :

Square

Depth :

8.5mm

Mating Contact Pitch :

0.1 inch

Insulation Color :

Gray

DIN Conformance :

yes

Mount :

Through Hole

Orientation :

Straight

Contact Gender :

Male

Feature :

Keying Slot, Mounting Flange

Material Flammability Rating :

UL94 V-0

Mounting Type :

Through Hole

Current Rating :

2A

Filter Feature :

No

Operating Temperature :

-55°C~125°C

Body Breadth :

0.335 inch

Number of Positions :

34

IEC Conformance :

yes

Contact Length - Mating :

0.228 5.80mm

Row Spacing - Mating :

0.100 (2.54mm)

Number of Conductors :

ONE

Contact Type :

Male Pin

Contact Finish - Post :

Tin

Color :

Grey

Insulation Height :

0.681 17.30mm

Overall Contact Length :

0.713 18.10mm

Series :

SEK

Pbfree Code :

yes

Fastening Type :

Latch Lock/Eject Hooks, Short

UL Flammability Code :

94V-0

Termination :

Solder

Pitch - Mating :

0.100 2.54mm

MIL Conformance :

No

Contact Finish - Mating :

NOT SPECIFIED

PCB Contact Pattern :

RECTANGULAR

Additional Feature :

STANDARDS: DIN EN 60603-13; IEC 60603-13, POLARIZED

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Contact Material :

COPPER ALLOY

Mixed Contacts :

No

Shrouding :

Shrouded - 4 Wall

Factory Lead Time :

7 Weeks

Reference Standard :

UL

Moisture Sensitivity Level (MSL) :

1 (Unlimited)
