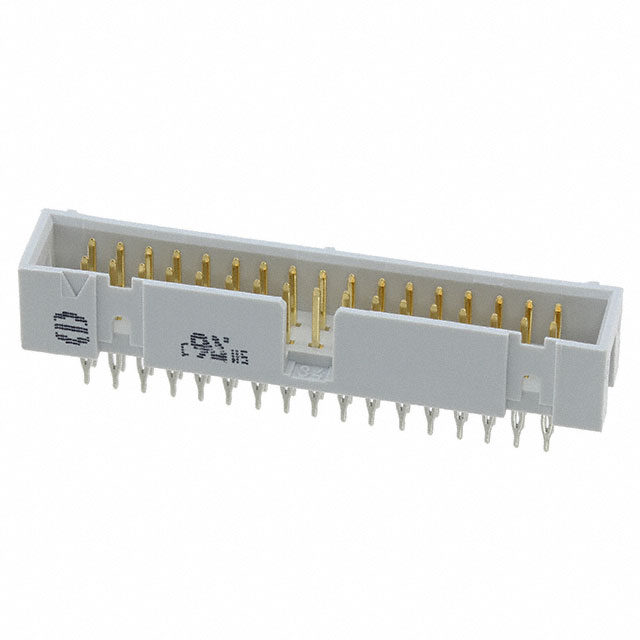

09185346329

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

REACH SVHC :

No SVHC

Number of Rows :

2

MIL Conformance :

No

Row Spacing - Mating :

0.100 (2.54mm)

Series :

SEK

Fastening Type :

Push-Pull

DIN Conformance :

yes

Number of Positions Loaded :

All

Contact Gender :

Male

Feature :

Keying Slot

Orientation :

Straight

Filter Feature :

No

Contact Shape :

Square

Pitch - Mating :

0.100 2.54mm

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Polarization Key :

POLARIZED HOUSING

Contact Length - Mating :

0.240 6.10mm

Color :

Grey

RoHS Status :

ROHS3 Compliant

Mating Contact Pitch :

0.1 inch

Material Flammability Rating :

UL94 V-0

Reference Standard :

UL

Reliability :

COMMERCIAL

Body Breadth :

0.366 inch

Contact Finish - Mating :

NOT SPECIFIED

Contact Finish - Post :

Tin

Mounting Type :

Through Hole

Contact Type :

Male Pin

Depth :

9.2mm

Rated Current (Signal) :

2A

Mount :

Through Hole

Insulation Resistance :

1000000000Ohm

Max Operating Temperature :

125°C

Option :

GENERAL PURPOSE

Min Operating Temperature :

-55°C

IEC Conformance :

No

Number of Positions :

34

Pbfree Code :

yes

Insulation Height :

0.350 8.89mm

Mixed Contacts :

No

Factory Lead Time :

7 Weeks

Style :

Board to Cable/Wire

Length :

50.8mm

Connector Type :

Header

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Current Rating :

1A

Contact Length - Post :

0.217 5.51mm

Packaging :

Bulk

Termination :

Press-Fit, Solder

Insulation Color :

Gray

Shrouding :

Shrouded - 4 Wall

Contact Material :

COPPER ALLOY

Additional Feature :

STANDARDS: MIL-C-83503; DIN 41651, POLARIZED

Number Of PCB Rows :

2

Number of Conductors :

ONE

UL Flammability Code :

94V-0

PCB Contact Pattern :

RECTANGULAR
