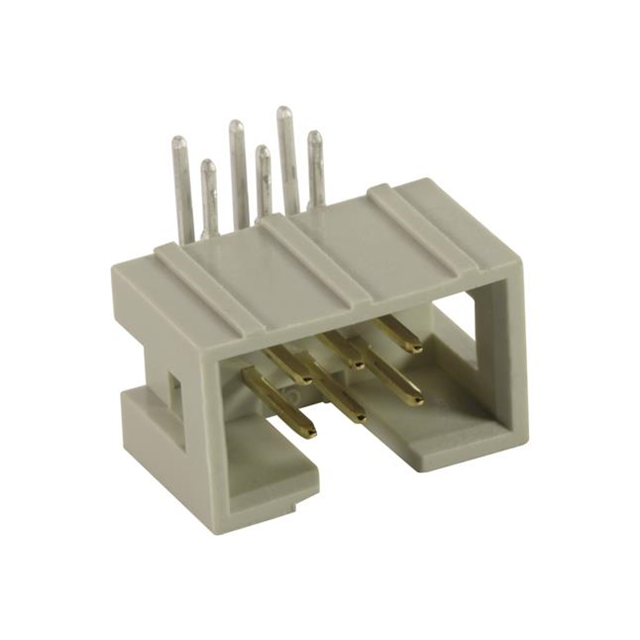

09185346321

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Number of Positions Loaded :

All

Contact Type :

Male Pin

Pbfree Code :

yes

Contact Length - Post :

0.177 4.50mm

Polarization Key :

POLARIZED HOUSING

Contact Finish - Mating :

NOT SPECIFIED

Reference Standard :

UL

Mating Contact Pitch :

0.1 inch

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Number of Rows :

2

RoHS Status :

ROHS3 Compliant

Rated Current (Signal) :

2A

Connector Type :

Header

Packaging :

Bulk

Insulation Resistance :

1000000000Ohm

Style :

Board to Cable/Wire

Number Of PCB Rows :

2

Termination :

Solder

Series :

SEK

Pitch - Mating :

0.100 2.54mm

Filter Feature :

No

Operating Temperature :

-55°C~125°C

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Positions :

34

Additional Feature :

STANDARDS: DIN EN 60603-13; IEC 60603-13, POLARIZED

Body Breadth :

0.366 inch

Mounting Type :

Through Hole, Right Angle

Mixed Contacts :

No

Contact Length - Mating :

0.240 6.10mm

Insulation Color :

Gray

IEC Conformance :

yes

Row Spacing - Mating :

0.100 (2.54mm)

Reliability :

COMMERCIAL

Fastening Type :

Latch Holder

Option :

GENERAL PURPOSE

Mount :

Through Hole

Feature :

Keying Slot

PCB Contact Pattern :

RECTANGULAR

Material Flammability Rating :

UL94 V-0

Contact Material :

COPPER ALLOY

Color :

Grey

MIL Conformance :

No

Length - Termination :

0.177 inch

Number of Conductors :

ONE

Body Depth :

0.48 inch

Contact Shape :

Square

DIN Conformance :

yes

Insulation Height :

0.366 9.30mm

UL Flammability Code :

94V-0

Shrouding :

Shrouded - 4 Wall
