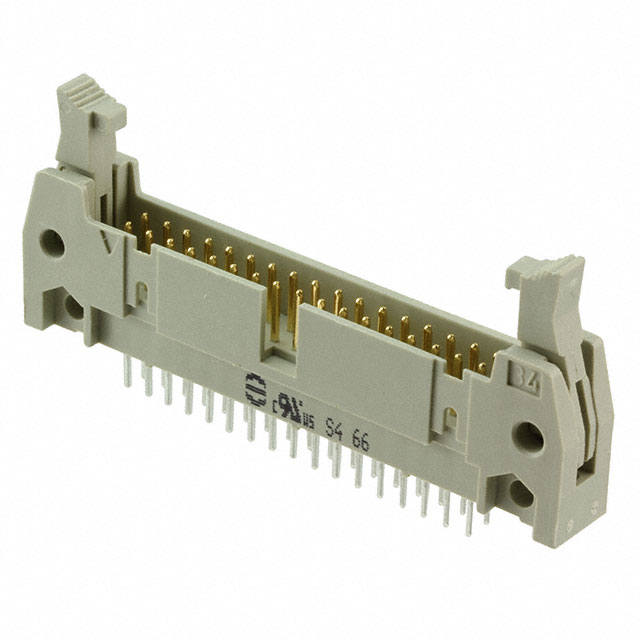

09185345902

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Filter Feature :

No

RoHS Status :

ROHS3 Compliant

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Reference Standard :

UL

Insulation Resistance :

1000000000Ohm

Feature :

Keying Slot, Mounting Flange

Operating Temperature :

-55°C~125°C

Number Of PCB Rows :

2

Style :

Board to Cable/Wire

Connector Type :

Header

Dielectric Withstanding Voltage :

1000VAC V

Overall Contact Length :

0.713 18.10mm

Termination :

Solder

Series :

SEK

Contact Finish - Post :

Tin

Pitch - Mating :

0.100 2.54mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Finish Thickness - Mating :

30.0μin 0.76μm

Contact Length - Post :

0.177 4.50mm

Option :

GENERAL PURPOSE

Number of Positions :

34

Contact Material :

COPPER ALLOY

Pbfree Code :

yes

ECCN Code :

EAR99

Number of Positions Loaded :

All

Fastening Type :

Latch Lock/Eject Hooks, Long

Polarization Key :

CTR W/GUIDE SLOTS

Shrouding :

Shrouded - 4 Wall

Mounting Type :

Through Hole

Packaging :

Bulk

Number of Conductors :

ONE

Material Flammability Rating :

UL94 V-0

Contact Length - Mating :

0.240 6.10mm

Mount :

Through Hole

Reliability :

COMMERCIAL

MIL Conformance :

No

Body Breadth :

0.331 inch

Color :

Grey

REACH SVHC :

No SVHC

Mating Contact Pitch :

0.1 inch

Plating Thickness :

30μin

Body Depth :

0.681 inch

HTS Code :

8536.69.40.40

PCB Contact Pattern :

RECTANGULAR

IEC Conformance :

No

Rated Current (Signal) :

1A

Insulation Color :

Gray

Gender :

Male

Row Spacing - Mating :

0.100 (2.54mm)

Additional Feature :

STANDARDS: DIN EN 60603-13; IEC 60603-13, POLARIZED

Contact Finish - Mating :

Gold

Length - Termination :

0.177 inch

Contact Type :

Male Pin

Factory Lead Time :

7 Weeks

Contact Shape :

Square

Number of Rows :

2

DIN Conformance :

yes

Insulation Height :

0.681 17.30mm

UL Flammability Code :

94V-0

Mixed Contacts :

No
