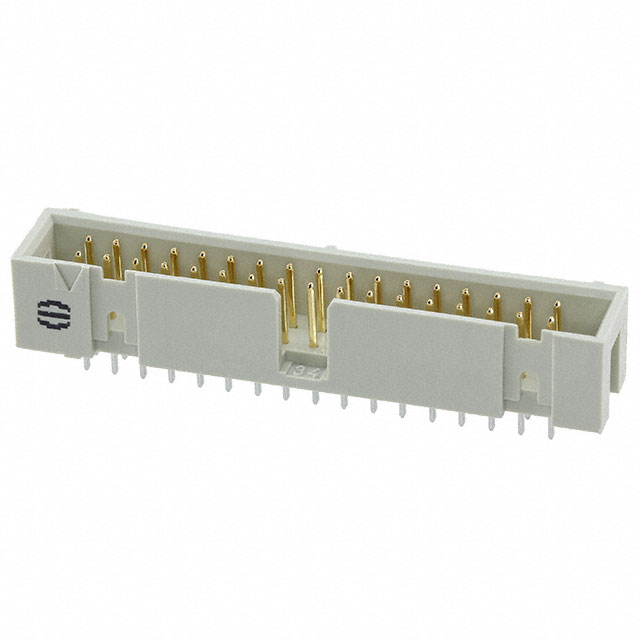

09185345324

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Length - Mating :

0.242 6.15mm

Number of Conductors :

ONE

Insulation Resistance :

1000000000Ohm

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Insulation Color :

Gray

Feature :

Keying Slot

Body Breadth :

0.366 inch

MIL Conformance :

No

Packaging :

Bulk

Plating Thickness :

30μin

Shrouding :

Shrouded - 4 Wall

Material Flammability Rating :

UL94 V-0

UL Flammability Code :

94V-0

Reliability :

COMMERCIAL

Contact Finish - Mating :

Gold

Rated Current (Signal) :

2A

Insulation Height :

0.350 8.89mm

Pbfree Code :

yes

Series :

SEK

RoHS Status :

ROHS3 Compliant

Factory Lead Time :

7 Weeks

Contact Shape :

Square

Reference Standard :

UL

Color :

Grey

Mounting Type :

Through Hole

IEC Conformance :

yes

Option :

GENERAL PURPOSE

Length - Termination :

0.114 inch

Style :

Board to Cable/Wire

Additional Feature :

STANDARD: IEC 60603-13; DIN EN 60603-13, POLARIZED

Contact Finish Thickness - Mating :

30.0μin 0.76μm

Row Spacing - Mating :

0.100 (2.54mm)

Current Rating :

2A

Polarization Key :

POLARIZED HOUSING

Termination :

Solder

Fastening Type :

Latch Holder

Number Of PCB Rows :

2

Contact Material :

COPPER ALLOY

Mating Contact Pitch :

0.1 inch

Contact Gender :

Male

Mixed Contacts :

No

Number of Positions :

34

Contact Length - Post :

0.114 2.90mm

Number of Positions Loaded :

All

Filter Feature :

No

Pitch - Mating :

0.100 2.54mm

Operating Temperature :

-55°C~125°C

Connector Type :

Header

Number of Rows :

2

Contact Finish - Post :

Tin

Contact Type :

Male Pin

Mount :

Through Hole

DIN Conformance :

yes

REACH SVHC :

No SVHC

PCB Contact Pattern :

RECTANGULAR
