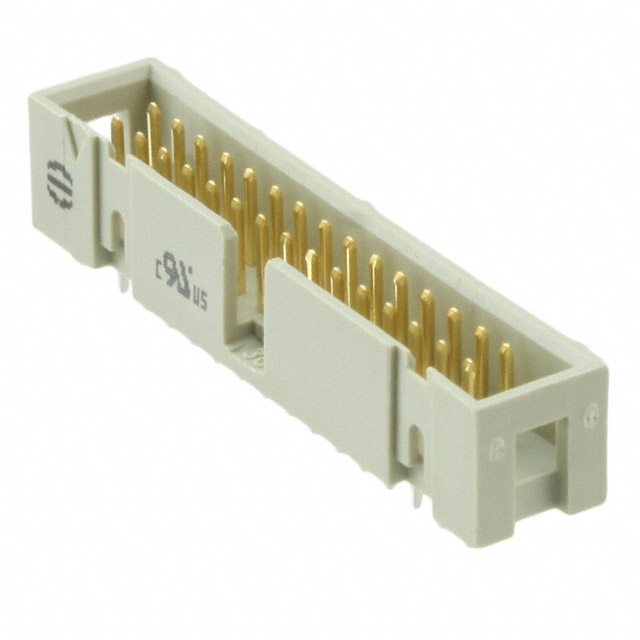

09185306324

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

JESD-609 Code :

e3

Length - Termination :

0.114 inch

Feature :

Keying Slot

Shrouding :

Shrouded - 4 Wall

Contact Length - Post :

0.114 2.90mm

Contact Plating :

Gold

Series :

SEK

Contact Finish - Post :

Tin

Insulation Height :

0.350 8.89mm

Reference Standard :

UL

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Factory Lead Time :

7 Weeks

Number of Positions :

30

Mount :

Through Hole

Mating Contact Pitch :

0.1 inch

Connector Type :

Header

Number of Conductors :

ONE

Body Breadth :

0.366 inch

Contact Material :

COPPER ALLOY

Termination :

Solder

Mounting Type :

Through Hole

Contact Shape :

Square

Material Flammability Rating :

UL94 V-0

Number of Positions Loaded :

All

Pitch - Mating :

0.100 2.54mm

Body Length or Diameter :

1.807 inch

Rated Current (Signal) :

2A

Fastening Type :

Latch Holder

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number Of PCB Rows :

2

Insulation Resistance :

1000000000Ohm

Number of Rows :

2

Packaging :

Bulk

Polarization Key :

POLARIZED HOUSING

RoHS Status :

ROHS3 Compliant

Style :

Board to Cable/Wire

Row Spacing - Mating :

0.100 (2.54mm)

Operating Temperature :

-55°C~125°C

Contact Type :

Male Pin

Insulation Color :

Gray

PCB Contact Pattern :

RECTANGULAR

Reliability :

COMMERCIAL

Contact Length - Mating :

0.240 6.10mm
