09185267913
Or copy the link below:
- Mfr.Part #
- 09185267913
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 26POS 2.54MM
- Stock
- 100
- In Stock ：
- 100
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Headers, Male Pins
- Pitch - Mating :
- 0.100 2.54mm
- Body Breadth :
- 0.331 inch
- Contact Length - Post :
- 0.114 2.90mm
- Filter Feature :
- No
- Contact Shape :
- Square
- MIL Conformance :
- No
- Current Rating :
- 2A
- Contact Finish - Mating :
- NOT SPECIFIED
- Contact Resistance :
- 20mOhm
- Additional Feature :
- STANDARDS: IEC 60603-13; DIN EN 60603-13, POLARIZED
- Number Of PCB Rows :
- 2
- Number of Rows :
- 2
- Mounting Type :
- Through Hole, Right Angle
- Factory Lead Time :
- 7 Weeks
- Hole Diameter :
- 900 μm
- PCB Contact Pattern :
- RECTANGULAR
- Polarization Key :
- CTR W/GUIDE SLOTS
- Working Voltage :
- 350V
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Rated Current (Signal) :
- 1A
- Mount :
- Through Hole
- Dielectric Withstanding Voltage :
- 1000VAC V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Voltage - Rated AC :
- 350V
- Insulation Color :
- Gray
- Contact Length - Mating :
- 0.240 6.10mm
- RoHS Status :
- ROHS3 Compliant
- Packaging :
- Bulk
- Length :
- 52.6mm
- Option :
- GENERAL PURPOSE
- Series :
- SEK
- Feature :
- Keying Slot, Mounting Flange
- Number of Positions Loaded :
- All
- Contact Material :
- COPPER ALLOY
- Operating Temperature :
- -55°C~125°C
- DIN Conformance :
- yes
- Color :
- Grey
- Mixed Contacts :
- No
- Lead Pitch :
- 2.54mm
- Flammability Rating :
- UL94 V-0
- Contact Gender :
- Male
- Durability :
- 50 Cycles
- Fastening Type :
- Latch Lock/Eject Hooks, Short
- Mating Contact Pitch :
- 0.1 inch
- Number of Conductors :
- ONE
- Pbfree Code :
- yes
- Style :
- Board to Cable/Wire
- Depth :
- 23.3mm
- Reference Standard :
- UL
- Material Flammability Rating :
- UL94 V-0
- Termination :
- Solder
- Insulation Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Reliability :
- COMMERCIAL
- Insulation Height :
- 0.335 8.51mm
- IEC Conformance :
- yes
- UL Flammability Code :
- 94V-0
- Shrouding :
- Shrouded - 4 Wall
- Contact Plating :
- Gold
- REACH SVHC :
- No SVHC
- Number of Poles :
- 26
- Insulation Resistance :
- 1GOhm
- Voltage - Rated DC :
- 350V
- Orientation :
- RIGHT ANGLE
- Connector Type :
- Header
- Contact Type :
- Male Pin
- Datasheets

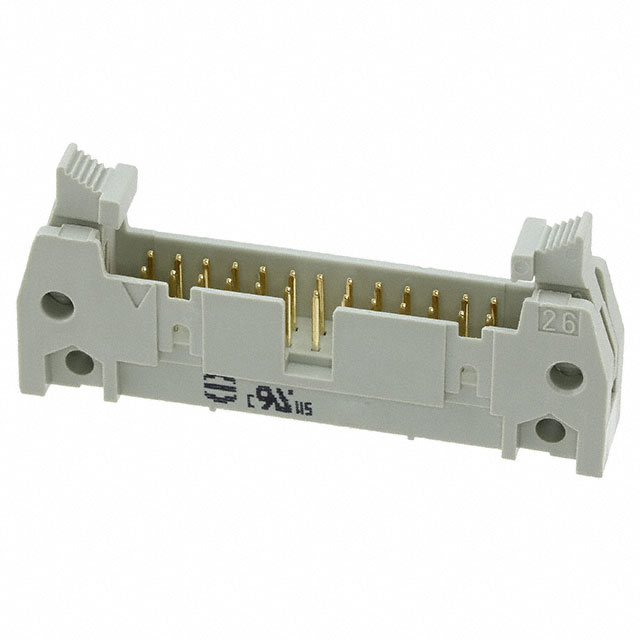

- 09185267913
SEK Series 2-Row Header Solder Copper Alloy Bulk Through Hole, Right Angle NOT SPECIFIED Polybutylene Terephthalate (PBT), Glass Filled Board to Cable/Wire 0.335 8.51mm Height
09185267913 Overview
Packaging is in the form of Header.This device has a Through Hole, Right Angle mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the SEK Series.Other features include STANDARDS: IEC 60603-13; DIN EN 60603-13, POLARIZED, to name just a few.Several benefits come from the Keying Slot, Mounting Flange feature.There is a mounting hole at Through Hole.Devices operate at -55°C~125°C operating temperatures.
