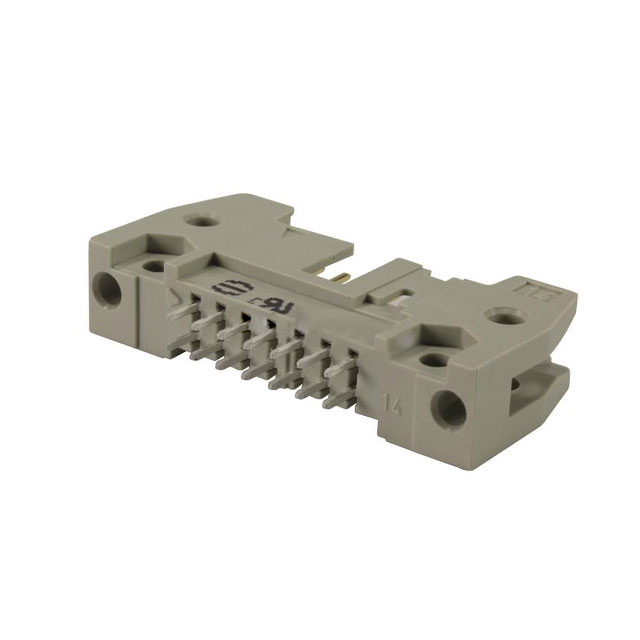

09185267912

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Packaging :

Bulk

Mounting Type :

Through Hole

Filter Feature :

No

Contact Length - Mating :

0.228 5.80mm

Rated Current (Signal) :

2A

Durability :

50 Cycles

Insulation Height :

0.681 17.30mm

Shrouding :

Shrouded - 4 Wall

Number of Rows :

2

Number Of PCB Rows :

2

UL Flammability Code :

94V-0

Length - Termination :

0.177 inch

Number of Conductors :

ONE

Row Spacing - Mating :

0.100 (2.54mm)

DIN Conformance :

yes

Polarization Key :

POLARIZED HOUSING

Termination :

Solder

RoHS Status :

ROHS3 Compliant

Mating Contact Pitch :

0.1 inch

Factory Lead Time :

7 Weeks

Body Breadth :

0.335 inch

MIL Conformance :

No

Operating Temperature :

-55°C~125°C

Additional Feature :

STANDARDS: DIN EN 60603-13; IEC 60603-13, POLARIZED

Feature :

Keying Slot, Mounting Flange

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Pitch - Mating :

0.100 2.54mm

Contact Length - Post :

0.177 4.50mm

Color :

Grey

IEC Conformance :

yes

Contact Material :

COPPER ALLOY

Option :

GENERAL PURPOSE

Mount :

Through Hole

Contact Shape :

Square

Insulation Resistance :

1000000000Ohm

Reliability :

COMMERCIAL

Series :

SEK

Contact Finish - Mating :

NOT SPECIFIED

Number of Positions Loaded :

All

Contact Finish - Post :

Tin

Mixed Contacts :

No

Overall Contact Length :

0.713 18.10mm

Contact Type :

Male Pin

Number of Positions :

26

Fastening Type :

Latch Lock/Eject Hooks, Short

PCB Contact Pattern :

RECTANGULAR

Style :

Board to Cable/Wire

Material Flammability Rating :

UL94 V-0

Pbfree Code :

yes

Connector Type :

Header

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Body Depth :

0.681 inch

Reference Standard :

UL

Insulation Color :

Gray
