09185267903
Or copy the link below:
- Mfr.Part #
- 09185267903
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 26POS 2.54MM
- Stock
- 100
- In Stock ：
- 100
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Headers, Male Pins
- PCB Contact Pattern :
- RECTANGULAR
- Reliability :
- COMMERCIAL
- HTS Code :
- 8536.69.40.40
- Option :
- GENERAL PURPOSE
- Factory Lead Time :
- 7 Weeks
- Insulation Height :
- 0.335 8.51mm
- Rated Current (Signal) :
- 2A
- Lead Pitch :
- 2.54mm
- IEC Conformance :
- yes
- Body Breadth :
- 0.335 inch
- Series :
- SEK
- Color :
- Grey
- Insulation Resistance :
- 1GOhm
- Filter Feature :
- No
- Voltage - Rated AC :
- 350V
- Insulation Color :
- Gray
- Mixed Contacts :
- No
- Mating Contact Pitch :
- 0.1 inch
- Polarization Key :
- POLARIZED HOUSING
- Feature :
- Keying Slot, Mounting Flange
- Length :
- 52.6mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- DIN Conformance :
- yes
- Number of Rows :
- 2
- Style :
- Board to Cable/Wire
- Contact Shape :
- Square
- Contact Material :
- COPPER ALLOY
- Pbfree Code :
- yes
- Working Voltage :
- 350V
- Connector Type :
- Header
- ECCN Code :
- EAR99
- Contact Finish - Mating :
- NOT SPECIFIED
- RoHS Status :
- ROHS3 Compliant
- Depth :
- 25.75mm
- UL Flammability Code :
- 94V-0
- Number of Conductors :
- ONE
- Packaging :
- Bulk
- Contact Length - Post :
- 0.114 2.90mm
- Fastening Type :
- Latch Lock/Eject Hooks, Long
- Additional Feature :
- STANDARDS: IEC 60603-13; DIN EN 60603-13, POLARIZED
- Number of Positions :
- 26
- Mount :
- Through Hole
- Reference Standard :
- UL
- Material Flammability Rating :
- UL94 V-0
- Flammability Rating :
- UL94 V-0
- Shrouding :
- Shrouded - 4 Wall
- Orientation :
- RIGHT ANGLE
- Number Of PCB Rows :
- 2
- Pitch - Mating :
- 0.100 2.54mm
- Termination :
- Solder
- Insulation Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- MIL Conformance :
- No
- Operating Temperature :
- -55°C~125°C
- Contact Resistance :
- 20mOhm
- Contact Type :
- Male Pin
- Durability :
- 50 Cycles
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Voltage - Rated DC :
- 350V
- Mounting Type :
- Through Hole, Right Angle
- Contact Gender :
- Male
- Number of Positions Loaded :
- All
- Contact Plating :
- Gold
- REACH SVHC :
- No SVHC
- Hole Diameter :
- 900 μm
- Current Rating :
- 1A
- Contact Length - Mating :
- 0.240 6.10mm
- Datasheets
- 09185267903

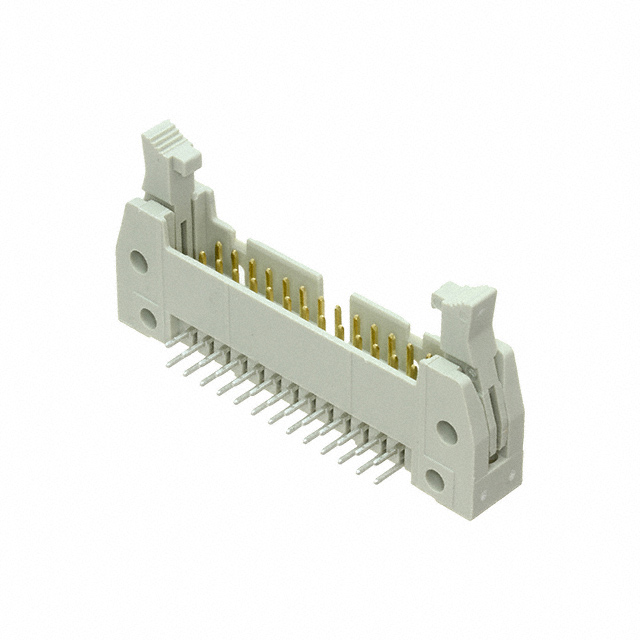

SEK Series 2-Row Header Solder Copper Alloy Bulk Through Hole, Right Angle NOT SPECIFIED Polybutylene Terephthalate (PBT), Glass Filled 26-Position Board to Cable/Wire 0.335 8.51mm Height
09185267903 Overview
It comes in Header packaging.The device's mounting type is Through Hole, Right Angle.In order to package the product, a Bulk case is used.It belongs to the SEK Series of products.In addition, there are other features such as STANDARDS: IEC 60603-13; DIN EN 60603-13, POLARIZED, to mention only a few.Its Keying Slot, Mounting Flange feature renders it more powerful in many ways.The part is mounted by Through Hole.The device runs in -55°C~125°C Operating Temperature.
09185267903 Features
SEK series
09185267903 Applications
There are a lot of HARTING
09185267903 Rectangular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
