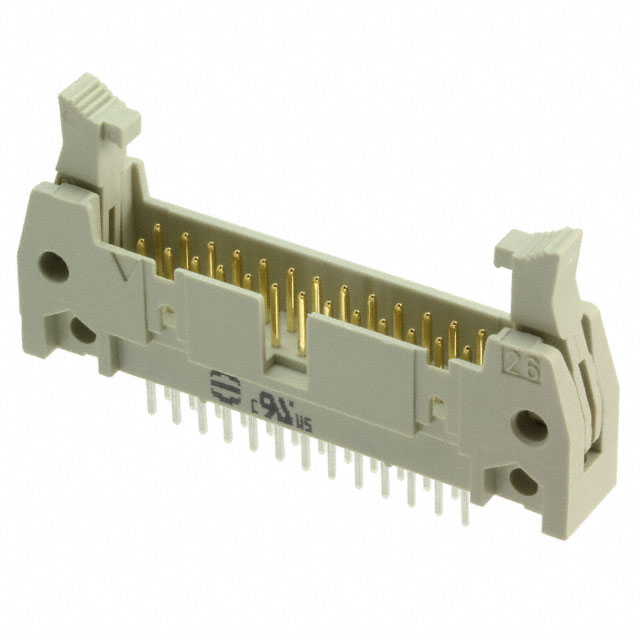

09185267902

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Contact Length - Mating :

0.240 6.10mm

Mixed Contacts :

No

Style :

Board to Cable/Wire

Packaging :

Bulk

Number of Rows :

2

Additional Feature :

STANDARDS: DIN EN 60603-13; IEC 60603-13, POLARIZED

Insulation Height :

0.681 17.30mm

Durability :

50 Cycles

Termination :

Solder

Dielectric Withstanding Voltage :

1000VAC V

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Mount :

Through Hole

MIL Conformance :

No

Contact Finish - Mating :

NOT SPECIFIED

UL Flammability Code :

94V-0

Material Flammability Rating :

UL94 V-0

Number Of PCB Rows :

2

Number of Positions :

26

Pbfree Code :

yes

RoHS Status :

ROHS3 Compliant

Contact Type :

Male Pin

Feature :

Keying Slot, Mounting Flange

Color :

Grey

PCB Contact Pattern :

RECTANGULAR

Length - Termination :

0.177 inch

Contact Length - Post :

0.177 4.50mm

Filter Feature :

No

IEC Conformance :

No

Factory Lead Time :

7 Weeks

Insulation Color :

Gray

Fastening Type :

Latch Lock/Eject Hooks, Long

Number of Conductors :

ONE

Overall Contact Length :

0.713 18.10mm

Mounting Type :

Through Hole

Mating Contact Pitch :

0.1 inch

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Series :

SEK

Contact Shape :

Square

Shrouding :

Shrouded - 4 Wall

Contact Finish - Post :

Tin

Connector Type :

Header

Operating Temperature :

-55°C~125°C

Row Spacing - Mating :

0.100 (2.54mm)

Insulation Resistance :

1000000000Ohm

Reference Standard :

UL

Body Depth :

0.681 inch

Rated Current (Signal) :

1A

DIN Conformance :

No

Body Breadth :

0.331 inch

Option :

GENERAL PURPOSE

Reliability :

COMMERCIAL

Number of Positions Loaded :

All

Polarization Key :

CTR W/GUIDE SLOTS

Pitch - Mating :

0.100 2.54mm

Contact Material :

COPPER ALLOY
