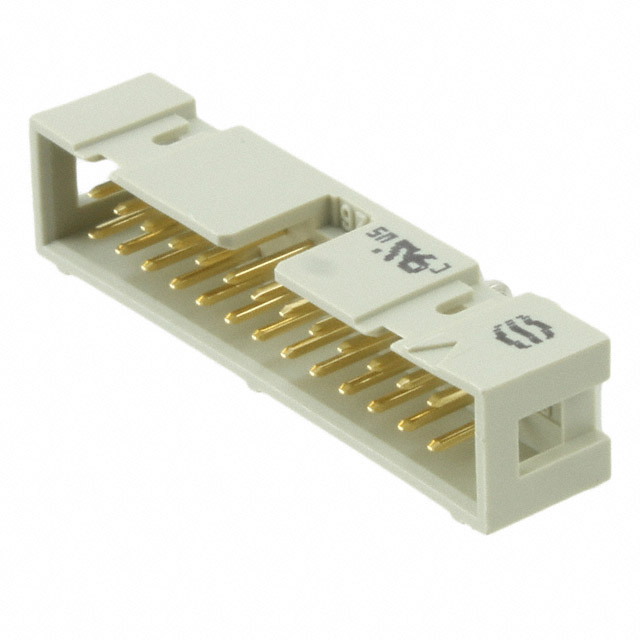

09185267323

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Voltage - Rated AC :

350V

Termination :

Solder

Mounting Type :

Through Hole, Right Angle

Contact Shape :

Square

Mating Contact Pitch :

0.1 inch

Series :

SEK

Feature :

Keying Slot

Length - Tail :

2.9mm

UL Flammability Code :

94V-0

Number of Positions Loaded :

All

Insulation Height :

0.366 9.30mm

Durability :

50 Cycles

Contact Material :

COPPER ALLOY

Contact Length - Post :

0.114 2.90mm

Color :

Grey

Dielectric Withstanding Voltage :

1000VAC V

Number of Poles :

26

Contact Length - Mating :

0.242 6.15mm

Voltage - Rated DC :

350V

Connector Type :

Header

REACH SVHC :

No SVHC

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Depth :

11.99mm

PCB Contact Pattern :

RECTANGULAR

DIN Conformance :

yes

Reference Standard :

UL

Orientation :

RIGHT ANGLE

Mount :

Through Hole

Rated Current (Signal) :

1A

IEC Conformance :

yes

Packaging :

Bulk

Number Of PCB Rows :

2

Current Rating :

1A

Contact Finish - Mating :

NOT SPECIFIED

Number of Conductors :

ONE

Material Flammability Rating :

UL94 V-0

Mixed Contacts :

No

Contact Plating :

Gold

Contact Type :

Male Pin

Length :

40.64mm

Gender :

Male

Shrouding :

Shrouded - 4 Wall

Factory Lead Time :

10 Weeks

Style :

Board to Cable/Wire

Reliability :

COMMERCIAL

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Flammability Rating :

UL94 V-0

Number of Rows :

2

MIL Conformance :

No

Insulation Color :

Gray

Lead Pitch :

2.54mm

Polarization Key :

CTR W/GUIDE SLOTS

Filter Feature :

No

Option :

GENERAL PURPOSE

Working Voltage :

350V

Fastening Type :

Latch Holder

Row Spacing - Mating :

0.100 (2.54mm)

RoHS Status :

ROHS3 Compliant

Hole Diameter :

900 μm

Additional Feature :

STANDARDS: DIN EN 60603-13; IEC 60603-13, POLARIZED

Insulation Resistance :

1GOhm

Pbfree Code :

yes

Pitch - Mating :

0.100 2.54mm

Lead Length :

29mm

Contact Resistance :

20mOhm

Operating Temperature :

-55°C~125°C
