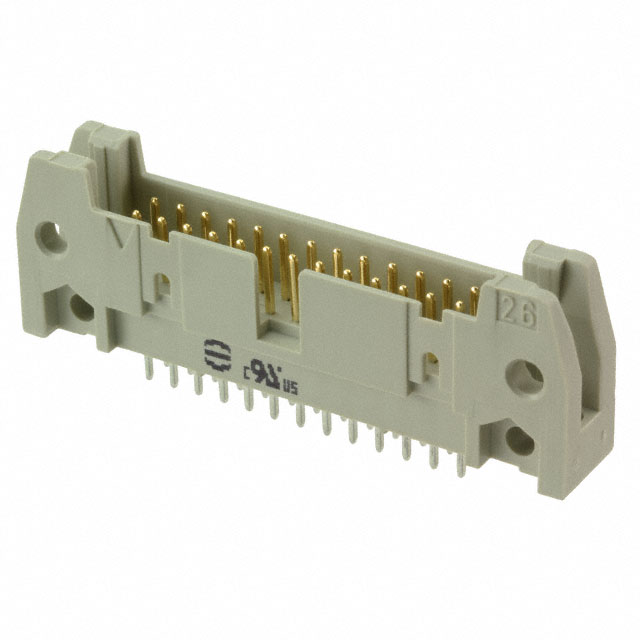

09185266924

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Contact Gender :

Male

Fastening Type :

Push-Pull

Operating Temperature :

-55°C~125°C

Contact Material :

COPPER ALLOY

MIL Conformance :

No

Insulation Color :

Gray

Number of Positions :

26

Style :

Board to Cable/Wire

Pbfree Code :

yes

Rated Current (Signal) :

2A

Depth :

8.5mm

Number of Positions Loaded :

All

Test Voltage :

1kV

REACH SVHC :

No SVHC

Orientation :

Straight

Contact Finish - Post :

Tin

Contact Length - Mating :

0.240 6.10mm

DIN Conformance :

yes

Insulation Height :

0.681 17.30mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

UL Flammability Code :

94V-0

Overall Contact Length :

0.650 16.51mm

Factory Lead Time :

7 Weeks

Mating Contact Pitch :

0.1 inch

IEC Conformance :

yes

Number Of PCB Rows :

2

Contact Type :

Male Pin

Pitch - Mating :

0.100 2.54mm

Contact Finish - Mating :

NOT SPECIFIED

Feature :

Keying Slot, Mounting Flange

Additional Feature :

STANDARDS: DIN EN 60603-13; IEC 60603-13, POLARIZED

Length :

52.6mm

Packaging :

Bulk

Number of Conductors :

ONE

Option :

GENERAL PURPOSE

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Series :

SEK

Mixed Contacts :

No

Body Breadth :

0.335 inch

Current Rating :

2A

Color :

Grey

RoHS Status :

ROHS3 Compliant

PCB Contact Pattern :

RECTANGULAR

Material Flammability Rating :

UL94 V-0

Mount :

Through Hole

Reliability :

COMMERCIAL

Insulation Resistance :

1000000000Ohm

Housing Material :

Polyester

Polarization Key :

POLARIZED HOUSING

Mounting Type :

Through Hole

Row Spacing - Mating :

0.100 (2.54mm)

Connector Type :

Header

Shrouding :

Shrouded - 4 Wall

Contact Shape :

Square

Termination :

Solder

Contact Length - Post :

0.114 2.90mm

Filter Feature :

No

Reference Standard :

UL

Number of Rows :

2
