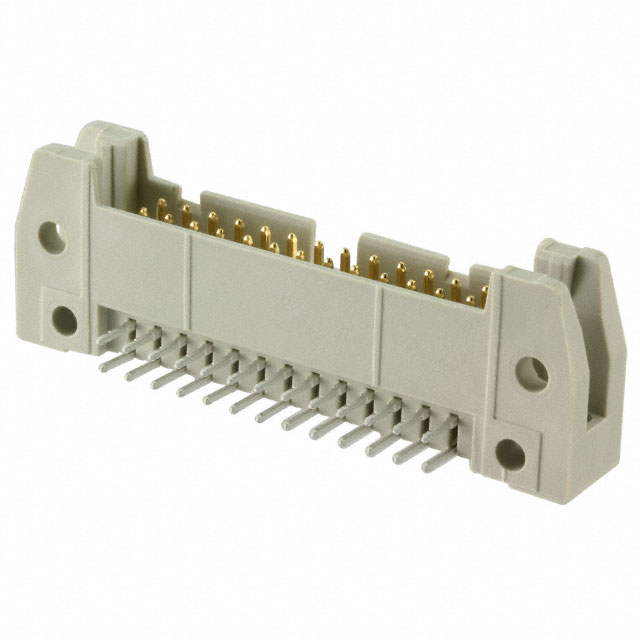

09185266923

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Housing Material :

Polyester

Additional Feature :

STANDARDS: IEC 60603-13; DIN EN 60603-13, POLARIZED

Series :

SEK

Contact Finish - Mating :

NOT SPECIFIED

Body Breadth :

0.335 inch

Factory Lead Time :

7 Weeks

IEC Conformance :

yes

Gender :

Male

Insulation Height :

0.335 8.51mm

Number of Rows :

2

Contact Shape :

Square

Rated Current (Signal) :

2A

Filter Feature :

No

Reference Standard :

UL

Length - Termination :

0.114 inch

Contact Type :

Male Pin

Contact Length - Post :

0.114 2.90mm

Orientation :

RIGHT ANGLE

Style :

Board to Cable/Wire

ECCN Code :

EAR99

Row Spacing - Mating :

0.100 (2.54mm)

Color :

Grey

Mount :

Through Hole

Operating Temperature :

-55°C~125°C

Contact Material :

COPPER ALLOY

MIL Conformance :

No

Shrouding :

Shrouded - 4 Wall

Reliability :

COMMERCIAL

Mounting Type :

Through Hole, Right Angle

Termination :

Solder

Number of Positions Loaded :

All

PCB Contact Pattern :

RECTANGULAR

Number of Conductors :

ONE

Contact Length - Mating :

0.240 6.10mm

Connector Type :

Header

Insulation Resistance :

1000000000Ohm

HTS Code :

8536.69.40.40

Number Of PCB Rows :

2

Mating Contact Pitch :

0.1 inch

Option :

GENERAL PURPOSE

Feature :

Keying Slot, Mounting Flange

Polarization Key :

POLARIZED HOUSING

UL Flammability Code :

94V-0

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Fastening Type :

Push-Pull

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Body Depth :

0.681 inch

Number of Positions :

26

Pitch - Mating :

0.100 2.54mm

RoHS Status :

ROHS3 Compliant

Insulation Color :

Gray

Material Flammability Rating :

UL94 V-0

Packaging :

Bulk

DIN Conformance :

yes

Current Rating :

1A

Mixed Contacts :

No

Pbfree Code :

yes
