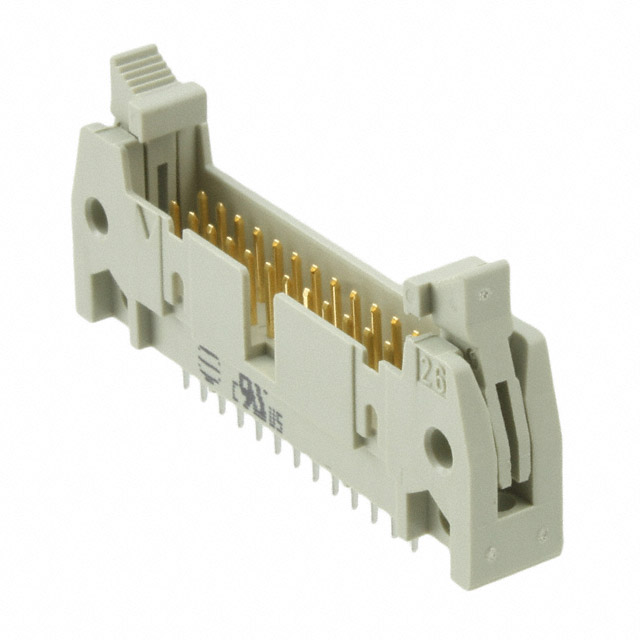

09185266914

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Connector Type :

Header

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Contact Plating :

Gold

Operating Temperature :

-55°C~125°C

Contact Type :

Male Pin

Length :

52.6mm

Additional Feature :

STANDARDS: DIN EN 60603-13; IEC 60603-13, POLARIZED

Number of Conductors :

ONE

Number of Positions :

26

DIN Conformance :

yes

Filter Feature :

No

Insulation Height :

0.681 17.30mm

Fastening Type :

Latch Lock/Eject Hooks, Short

Number Of PCB Rows :

2

Pitch - Mating :

0.100 2.54mm

Contact Length - Mating :

0.228 5.80mm

Overall Contact Length :

0.650 16.51mm

Material Flammability Rating :

UL94 V-0

RoHS Status :

ROHS3 Compliant

Packaging :

Bulk

Series :

SEK

Reliability :

COMMERCIAL

IEC Conformance :

yes

Factory Lead Time :

4 Weeks

Contact Material :

COPPER ALLOY

Mating Contact Pitch :

0.1 inch

Body Breadth :

0.335 inch

Row Spacing - Mating :

0.100 (2.54mm)

Contact Gender :

Male

Current Rating :

2A

PCB Contact Pattern :

RECTANGULAR

Contact Finish - Post :

Tin

Depth :

8.5mm

UL Flammability Code :

94V-0

Style :

Board to Cable/Wire

Contact Shape :

Square

Shrouding :

Shrouded - 4 Wall

Feature :

Keying Slot, Mounting Flange

Mount :

Through Hole

Option :

GENERAL PURPOSE

Contact Length - Post :

0.114 2.90mm

REACH SVHC :

No SVHC

Insulation Resistance :

1000000000Ohm

Contact Finish - Mating :

NOT SPECIFIED

Pbfree Code :

yes

Number of Rows :

2

Number of Positions Loaded :

All

Termination :

Solder

Reference Standard :

UL

Orientation :

Straight

MIL Conformance :

No

Polarization Key :

POLARIZED HOUSING

Mixed Contacts :

No

Rated Current (Signal) :

2A

Mounting Type :

Through Hole

Insulation Color :

Gray
