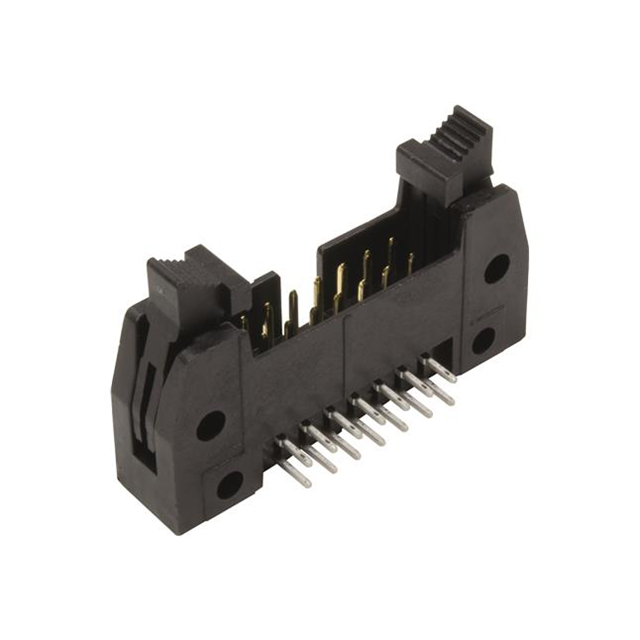

09185266913001

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Contact Shape :

Square

Pitch - Mating :

0.100 2.54mm

Mounting Type :

Through Hole, Right Angle

Row Spacing - Mating :

0.100 (2.54mm)

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Contact Type :

Male Pin

Insulation Height :

0.335 8.51mm

Fastening Type :

Latch Lock/Eject Hooks, Short

Contact Length - Post :

0.114 2.90mm

Number of Rows :

2

Factory Lead Time :

7 Weeks

ECCN Code :

EAR99

HTS Code :

8536.69.40.40

Feature :

Keying Slot, Mounting Flange

Number of Positions Loaded :

All

Shrouding :

Shrouded - 4 Wall

Number of Positions :

26

Mount :

Through Hole

Insulation Color :

Black

Connector Type :

Header

Style :

Board to Cable/Wire

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Length - Mating :

0.228 5.80mm

Operating Temperature :

-55°C~125°C

Material Flammability Rating :

UL94 V-0

Series :

SEK

Packaging :

Bulk

RoHS Status :

ROHS3 Compliant

Termination :

Solder

Contact Material :

COPPER ALLOY
