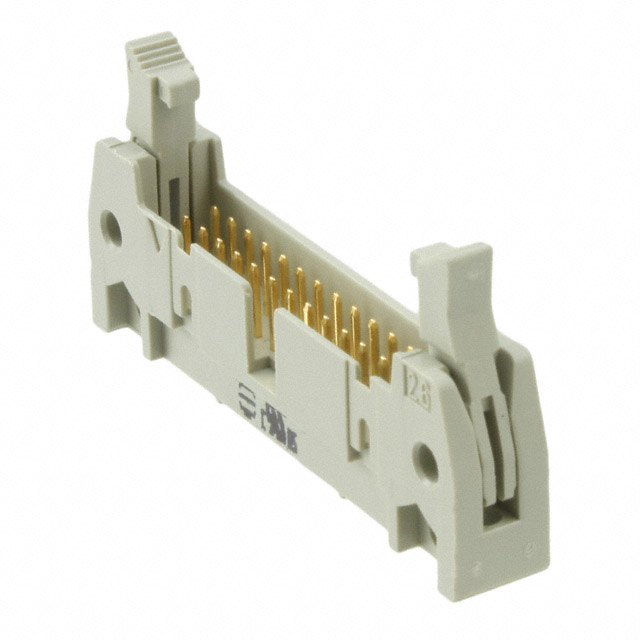

09185266903

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Number of Conductors :

ONE

Voltage - Rated DC :

350V

Flammability Rating :

UL94 V-0

Contact Gender :

Male

Hole Diameter :

900 μm

Fastening Type :

Latch Lock/Eject Hooks, Long

MIL Conformance :

No

Factory Lead Time :

4 Weeks

Packaging :

Tray

Reference Standard :

UL

Color :

Grey

Mount :

Through Hole

Polarization Key :

POLARIZED HOUSING

Mounting Type :

Through Hole, Right Angle

Insulation Resistance :

1GOhm

Contact Length - Mating :

0.240 6.10mm

Pitch - Mating :

0.100 2.54mm

Style :

Board to Cable/Wire

Number of Poles :

26

Option :

GENERAL PURPOSE

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

PCB Contact Pattern :

RECTANGULAR

Insulation Color :

Gray

Body Breadth :

0.335 inch

Contact Shape :

Square

HTS Code :

8536.69.40.40

UL Flammability Code :

94V-0

Feature :

Keying Slot, Mounting Flange

Filter Feature :

No

Working Voltage :

350V

Number of Rows :

2

Current Rating :

2A

Shrouding :

Shrouded - 4 Wall

Additional Feature :

STANDARDS: IEC 60603-13; DIN EN 60603-13, POLARIZED

IEC Conformance :

yes

RoHS Status :

ROHS3 Compliant

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Lead Pitch :

2.54mm

Connector Type :

Header

REACH SVHC :

No SVHC

Rated Current (Signal) :

2A

Depth :

25.75mm

Orientation :

RIGHT ANGLE

Contact Material :

COPPER ALLOY

Mixed Contacts :

No

Reliability :

COMMERCIAL

Number Of PCB Rows :

2

Voltage - Rated AC :

350V

Contact Finish - Mating :

NOT SPECIFIED

Termination :

Solder

Lead Free :

Lead Free

Length :

52.6mm

Contact Length - Post :

0.114 2.90mm

Contact Type :

Male Pin

Pbfree Code :

yes

Number of Positions Loaded :

All

Contact Resistance :

20mOhm

Mating Contact Pitch :

0.1 inch

DIN Conformance :

yes

ECCN Code :

EAR99

Material Flammability Rating :

UL94 V-0

Insulation Height :

0.335 8.51mm

Operating Temperature :

-55°C~125°C

Contact Current Rating :

1A

Contact Plating :

Gold

Series :

SEK

Row Spacing - Mating :

0.100 (2.54mm)
