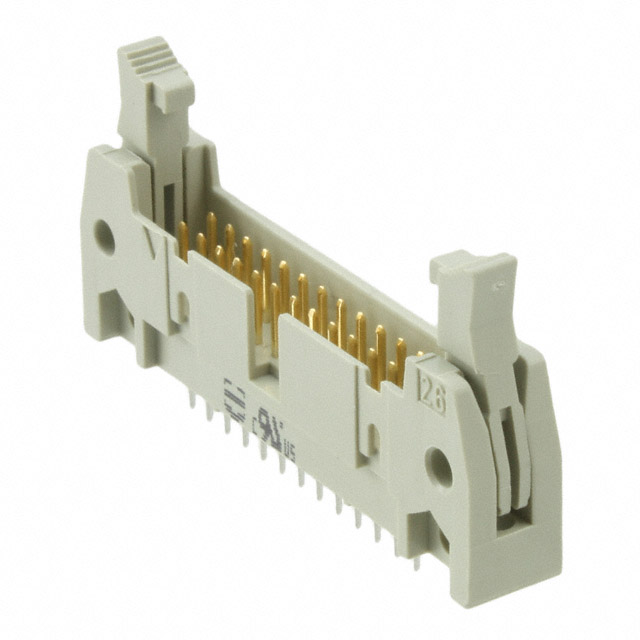

09185266902

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Current Rating :

2A

Number of Positions :

26

Voltage - Rated :

500V

Contact Length - Mating :

0.240 6.10mm

Overall Contact Length :

0.713 18.10mm

UL Flammability Code :

94V-0

Contact Finish - Mating :

NOT SPECIFIED

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Mating Contact Pitch :

0.1 inch

Series :

SEK

Factory Lead Time :

7 Weeks

Connector Type :

Header

Depth :

8.5mm

MIL Conformance :

No

Pbfree Code :

yes

Length :

52.6mm

Packaging :

Bulk

Additional Feature :

STANDARDS: DIN EN 60603-13; IEC 60603-13, POLARIZED

Mixed Contacts :

No

Contact Shape :

Square

Filter Feature :

No

Contact Length - Post :

0.177 4.50mm

Orientation :

Straight

Insulation Height :

0.681 17.30mm

REACH SVHC :

No SVHC

Contact Type :

Male Pin

Rated Current (Signal) :

1A

Number of Positions Loaded :

All

Mount :

Through Hole

Contact Material :

COPPER ALLOY

RoHS Status :

ROHS3 Compliant

Pitch - Mating :

0.100 2.54mm

Dielectric Withstanding Voltage :

1000VAC V

Option :

GENERAL PURPOSE

Number of Conductors :

ONE

Fastening Type :

Latch Lock/Eject Hooks, Long

DIN Conformance :

No

PCB Contact Pattern :

RECTANGULAR

Shrouding :

Shrouded - 4 Wall

Insulation Color :

Gray

Color :

Grey

Mounting Type :

Through Hole

Style :

Board to Cable/Wire

Termination :

Solder

Number Of PCB Rows :

2

Number of Rows :

2

Housing Material :

PBT

Row Spacing - Mating :

0.100 (2.54mm)

Contact Finish - Post :

Tin

Material Flammability Rating :

UL94 V-0

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Feature :

Keying Slot, Mounting Flange

Operating Temperature :

-55°C~125°C

IEC Conformance :

No

Reference Standard :

UL

Gender :

Male

Polarization Key :

CTR W/GUIDE SLOTS

Flammability Rating :

UL94 V-0

Insulation Resistance :

1000000000Ohm

Body Breadth :

0.331 inch

Reliability :

COMMERCIAL
