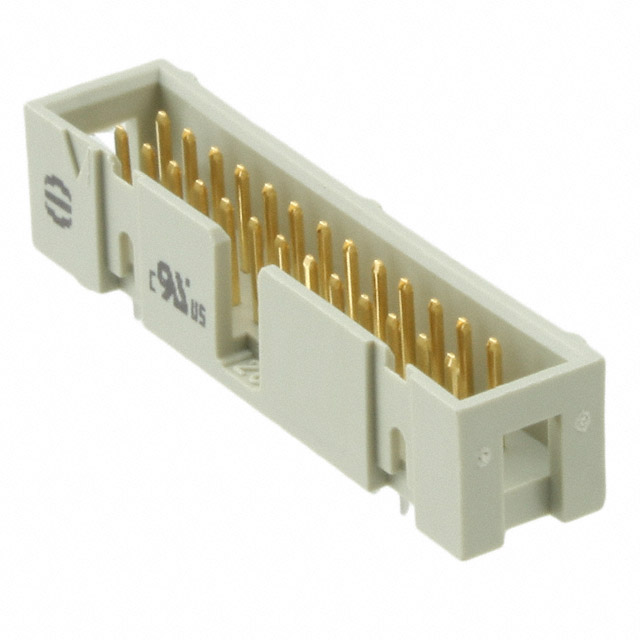

09185266324
Or copy the link below:
- Mfr.Part #
- 09185266324
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 26POS 2.54MM
- Stock
- 122
- In Stock ：
- 122
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Headers, Male Pins
- Contact Finish - Mating :
- NOT SPECIFIED
- Contact Shape :
- Square
- Color :
- Grey
- Pbfree Code :
- yes
- Insulation Height :
- 0.350 8.89mm
- Pitch - Mating :
- 0.100 2.54mm
- Packaging :
- Tray
- Height :
- 12.35mm
- ECCN Code :
- EAR99
- Hole Diameter :
- 900 μm
- Contact Length - Post :
- 0.114 2.90mm
- Number Of PCB Rows :
- 2
- Factory Lead Time :
- 4 Weeks
- Termination :
- Solder
- Insulation Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Housing Material :
- Polyester
- Mount :
- Through Hole
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Conductors :
- ONE
- Contact Plating :
- Gold
- Fastening Type :
- Latch Holder
- Reference Standard :
- UL
- Body Breadth :
- 0.366 inch
- IEC Conformance :
- yes
- Mixed Contacts :
- No
- Working Voltage :
- 350V
- Option :
- GENERAL PURPOSE
- Material Flammability Rating :
- UL94 V-0
- PCB Contact Pattern :
- RECTANGULAR
- Width :
- 40.6mm
- Rated Current (Signal) :
- 2A
- Reliability :
- COMMERCIAL
- Flammability Rating :
- UL94 V-0
- Series :
- SEK
- Shrouding :
- Shrouded - 4 Wall
- REACH SVHC :
- No SVHC
- Orientation :
- Straight
- Feature :
- Keying Slot
- Contact Resistance :
- 20mOhm
- DIN Conformance :
- yes
- Length :
- 9.3mm
- Filter Feature :
- No
- Number of Poles :
- 26
- Insulation Resistance :
- 1GOhm
- Insulation Color :
- Gray
- Row Spacing - Mating :
- 0.100 (2.54mm)
- UL Flammability Code :
- 94V-0
- Test Voltage :
- 1kV
- Contact Current Rating :
- 1A
- Contact Finish - Post :
- Tin
- Gender :
- Male
- Connector Type :
- Header
- Depth :
- 9.2mm
- Mating Contact Pitch :
- 0.1 inch
- RoHS Status :
- ROHS3 Compliant
- Number of Positions Loaded :
- All
- MIL Conformance :
- No
- Approval Agency :
- IEC
- HTS Code :
- 8536.69.40.40
- Style :
- Board to Cable/Wire
- Lead Pitch :
- 2.54mm
- Contact Type :
- Male Pin
- Voltage - Rated AC :
- 350V
- Mounting Type :
- Through Hole
- Lead Length :
- 29mm
- Voltage - Rated DC :
- 350V
- Operating Temperature :
- -55°C~125°C
- Current Rating :
- 1A
- Number of Rows :
- 2
- Polarization Key :
- POLARIZED HOUSING
- Contact Length - Mating :
- 0.240 6.10mm
- Contact Material :
- COPPER ALLOY
- Datasheets
- 09185266324
SEK Series 2-Row Header Solder Copper Alloy Tray Through Hole NOT SPECIFIED Polybutylene Terephthalate (PBT), Glass Filled Board to Cable/Wire 0.350 8.89mm Height
09185266324 Overview
The packaging contains Header.There is a Through Hole mounting type for the device.This product is packaged in a case marked Tray.Product number SEK belongs to the SEK Series.In many ways, it is more powerful due to its Keying Slot feature.There is a Through Hole mount on the part.This device operates at a temperature of -55°C~125°C.
09185266324 Features
SEK series
09185266324 Applications
There are a lot of HARTING
09185266324 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
