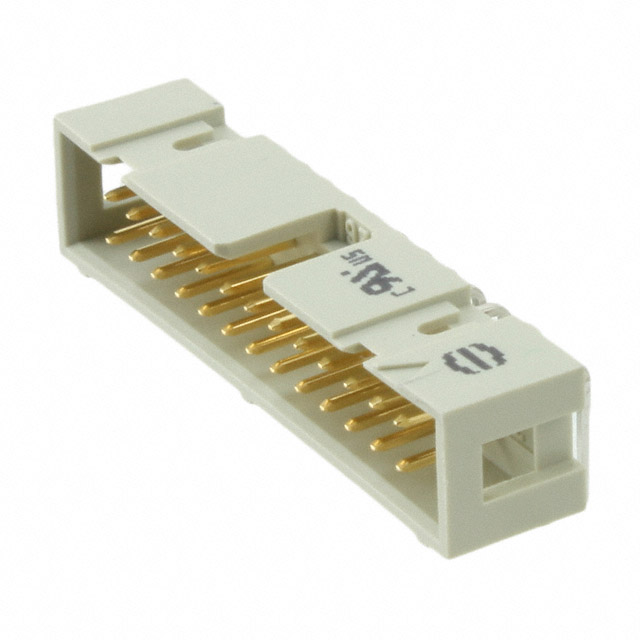

09185266323

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Rated Current (Signal) :

1A

Operating Temperature :

-55°C~125°C

Mixed Contacts :

No

Width :

40.6mm

Termination :

Solder

Mount :

Through Hole

Filter Feature :

No

Packaging :

Tray

Row Spacing - Mating :

0.100 (2.54mm)

Voltage - Rated AC :

350V

Contact Gender :

Male

Mounting Type :

Through Hole, Right Angle

Hole Diameter :

900 μm

Test Voltage :

1kV

ECCN Code :

EAR99

Polarization Key :

CTR W/GUIDE SLOTS

Contact Plating :

Gold

Dielectric Withstanding Voltage :

1000VAC V

Housing Material :

Polyester

Depth :

11.99mm

Orientation :

RIGHT ANGLE

Pitch - Mating :

0.100 2.54mm

Working Voltage :

350V

Option :

GENERAL PURPOSE

Insulation Resistance :

1GOhm

DIN Conformance :

yes

Current Rating :

1A

Number of Rows :

2

Contact Material :

COPPER ALLOY

Additional Feature :

STANDARDS: DIN EN 60603-13; IEC 60603-13, POLARIZED

Contact Resistance :

20mOhm

Series :

SEK

Fastening Type :

Latch Holder

Flammability Rating :

UL94 V-0

HTS Code :

8536.69.40.40

Factory Lead Time :

4 Weeks

Voltage - Rated DC :

350V

PCB Contact Pattern :

RECTANGULAR

Connector Type :

Header

Mating Contact Pitch :

0.1 inch

Number of Positions Loaded :

All

Contact Length - Post :

0.114 2.90mm

Number of Conductors :

ONE

Contact Current Rating :

1A

Material Flammability Rating :

UL94 V-0

Color :

Grey

Contact Shape :

Square

Number of Poles :

26

Pbfree Code :

yes

Length :

40.64mm

Reliability :

COMMERCIAL

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

UL Flammability Code :

94V-0

Reference Standard :

UL

REACH SVHC :

No SVHC

MIL Conformance :

No

Feature :

Keying Slot

Shrouding :

Shrouded - 4 Wall

Insulation Color :

Gray

Contact Length - Mating :

0.242 6.15mm

IEC Conformance :

yes

Number Of PCB Rows :

2

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Contact Finish - Mating :

NOT SPECIFIED

RoHS Status :

ROHS3 Compliant

Contact Type :

Male Pin

Insulation Height :

0.366 9.30mm

Style :

Board to Cable/Wire

Lead Pitch :

2.54mm
