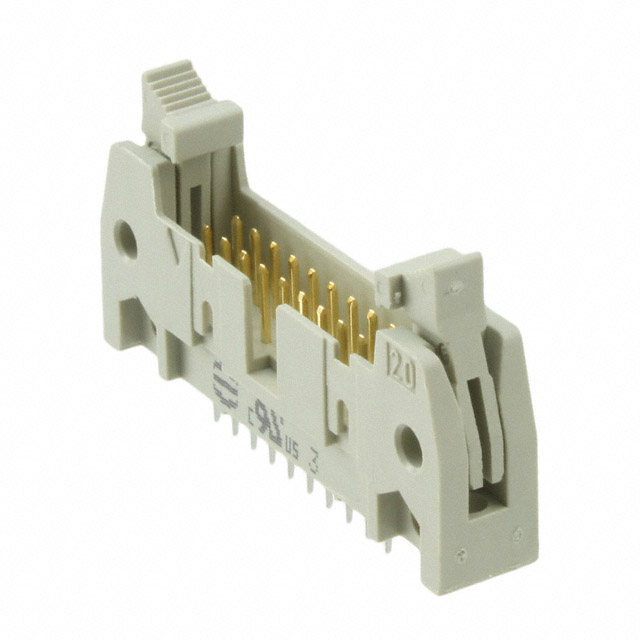

09185207914

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Packaging :

Tray

UL Flammability Code :

94V-0

Insulation Color :

Gray

Contact Material :

COPPER ALLOY

Insulation Resistance :

1GOhm

Shrouding :

Shrouded - 4 Wall

Durability :

50 Cycles

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Material Flammability Rating :

UL94 V-0

Reference Standard :

UL

Contact Gender :

Male

Number of Rows :

2

Series :

SEK

Housing Material :

Polybutylene

Pitch - Mating :

0.100 2.54mm

Depth :

8.5mm

Termination :

Solder

Mount :

Through Hole

Pbfree Code :

yes

Orientation :

Straight

Color :

Grey

Mixed Contacts :

No

Lead Pitch :

2.54mm

Contact Type :

Male Pin

Current Rating :

2A

Factory Lead Time :

4 Weeks

Overall Contact Length :

0.650 16.51mm

Contact Shape :

Square

Connector Type :

Header

Working Voltage :

350V

Length :

45mm

Contact Finish - Post :

Tin

Mating Contact Pitch :

0.1 inch

Feature :

Keying Slot, Mounting Flange

Max Current Rating :

1A

RoHS Status :

ROHS3 Compliant

Contact Plating :

Gold

DIN Conformance :

yes

Flammability Rating :

UL94 V-0

HTS Code :

8536.69.40.40

Operating Temperature :

-55°C~125°C

Option :

GENERAL PURPOSE

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

IEC Conformance :

yes

Reliability :

COMMERCIAL

PCB Contact Pattern :

RECTANGULAR

Mounting Type :

Through Hole

Number of Conductors :

ONE

ECCN Code :

EAR99

Style :

Board to Cable/Wire

Row Spacing - Mating :

0.100 (2.54mm)

Insulation Height :

0.681 17.30mm

Body Breadth :

0.335 inch

Voltage - Rated DC :

350V

Fastening Type :

Latch Lock/Eject Hooks, Short

Contact Length - Mating :

0.228 5.80mm

MIL Conformance :

No

Number of Positions Loaded :

All

Number of Poles :

20

Rated Current (Signal) :

2A

Contact Length - Post :

0.114 2.90mm

Contact Finish - Mating :

NOT SPECIFIED

Polarization Key :

POLARIZED HOUSING

Additional Feature :

STANDARDS: DIN EN 60603-13; IEC 60603-13, POLARIZED

Filter Feature :

No

REACH SVHC :

No SVHC

Voltage - Rated AC :

350V

Number Of PCB Rows :

2

Lead Length :

29mm

Contact Resistance :

20mOhm
