09185207904
Or copy the link below:
- Mfr.Part #
- 09185207904
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 20POS 2.54MM
- Stock
- 352
- In Stock ：
- 352
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Headers, Male Pins
- Material Flammability Rating :
- UL94 V-0
- Contact Resistance :
- 20mOhm
- Packaging :
- Bulk
- Contact Plating :
- Gold
- IEC Conformance :
- No
- Voltage - Rated DC :
- 350V
- Flammability Rating :
- UL94 V-0
- Reliability :
- COMMERCIAL
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Operating Temperature :
- -55°C~125°C
- Mating Contact Pitch :
- 0.1 inch
- Lead Length :
- 29mm
- Mixed Contacts :
- No
- Number of Conductors :
- ONE
- Polarization Key :
- CTR W/GUIDE SLOTS
- Depth :
- 8.5mm
- UL Flammability Code :
- 94V-0
- Contact Material :
- COPPER ALLOY
- Dielectric Withstanding Voltage :
- 1000VAC V
- Overall Contact Length :
- 0.650 16.51mm
- Insulation Color :
- Gray
- Insulation Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Lead Pitch :
- 2.54mm
- HTS Code :
- 8536.69.40.40
- Series :
- SEK
- Gender :
- Male
- Body Breadth :
- 0.331 inch
- ECCN Code :
- EAR99
- Mounting Type :
- Through Hole
- Color :
- Grey
- Insulation Resistance :
- 1GOhm
- Number Of PCB Rows :
- 2
- Reference Standard :
- UL
- Number of Poles :
- 20
- Number of Positions Loaded :
- All
- Additional Feature :
- STANDARDS: DIN EN 60603-13; IEC 60603-13, POLARIZED
- Option :
- GENERAL PURPOSE
- Filter Feature :
- No
- Number of Rows :
- 2
- Insulation Height :
- 0.681 17.30mm
- Shrouding :
- Shrouded - 4 Wall
- RoHS Status :
- ROHS3 Compliant
- Pbfree Code :
- yes
- DIN Conformance :
- yes
- Contact Length - Post :
- 0.114 2.90mm
- Contact Finish - Mating :
- NOT SPECIFIED
- Connector Type :
- Header
- Orientation :
- Straight
- Termination :
- Solder
- Contact Finish - Post :
- Tin
- Rated Current (Signal) :
- 1A
- MIL Conformance :
- No
- Working Voltage :
- 350V
- Feature :
- Keying Slot, Mounting Flange
- Pitch - Mating :
- 0.100 2.54mm
- Durability :
- 50 Cycles
- Contact Shape :
- Square
- REACH SVHC :
- No SVHC
- Contact Length - Mating :
- 0.228 5.80mm
- Current Rating :
- 1A
- PCB Contact Pattern :
- RECTANGULAR
- Style :
- Board to Cable/Wire
- Hole Diameter :
- 900 μm
- Voltage - Rated AC :
- 350V
- Factory Lead Time :
- 4 Weeks
- Length :
- 45mm
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Contact Type :
- Male Pin
- Fastening Type :
- Latch Lock/Eject Hooks, Long
- Mount :
- Through Hole
- Datasheets

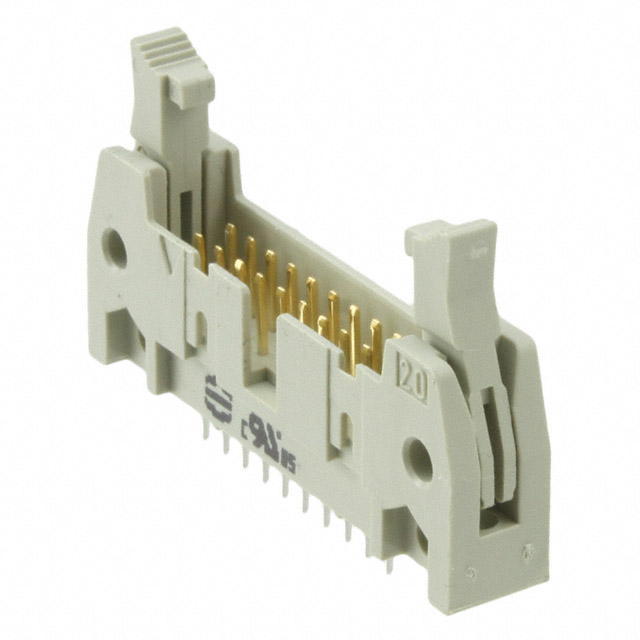

- 09185207904
SEK Series 2-Row Header Solder Copper Alloy Bulk Through Hole NOT SPECIFIED Polybutylene Terephthalate (PBT), Glass Filled Board to Cable/Wire 0.681 17.30mm Height
09185207904 Overview
Packaging is in the form of Header.This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the SEK Series.Other features include STANDARDS: DIN EN 60603-13; IEC 60603-13, POLARIZED, to name just a few.Several benefits come from the Keying Slot, Mounting Flange feature.There is a mounting hole at Through Hole.Devices operate at -55°C~125°C operating temperatures.
