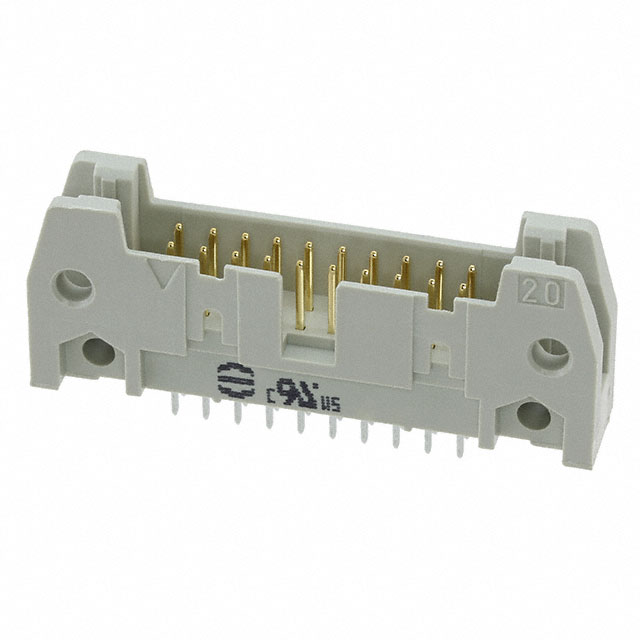

09185206924

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

PCB Contact Pattern :

RECTANGULAR

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Connector Type :

Header

Current Rating :

2A

Option :

GENERAL PURPOSE

Reliability :

COMMERCIAL

Style :

Board to Cable/Wire

Length - Termination :

0.114 inch

IEC Conformance :

yes

Mounting Type :

Through Hole

Reference Standard :

UL

REACH SVHC :

No SVHC

DIN Conformance :

yes

Color :

Grey

Body Depth :

0.681 inch

Mating Contact Pitch :

0.1 inch

Feature :

Keying Slot, Mounting Flange

Contact Finish - Post :

Tin

Additional Feature :

STANDARDS: DIN EN 60603-13; IEC 60603-13, POLARIZED

Number of Rows :

2

Insulation Resistance :

1000000000Ohm

Contact Type :

Male Pin

Body Breadth :

0.335 inch

RoHS Status :

ROHS3 Compliant

Shrouding :

Shrouded - 4 Wall

Series :

SEK

Polarization Key :

POLARIZED HOUSING

Fastening Type :

Push-Pull

Housing Material :

Polyester

ECCN Code :

EAR99

Pbfree Code :

yes

Mixed Contacts :

No

Orientation :

Straight

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Filter Feature :

No

Contact Shape :

Square

Contact Finish - Mating :

NOT SPECIFIED

HTS Code :

8536.69.40.40

Material Flammability Rating :

UL94 V-0

Termination :

Solder

Insulation Height :

0.681 17.30mm

Mount :

Through Hole

Number Of PCB Rows :

2

Contact Length - Mating :

0.240 6.10mm

Contact Length - Post :

0.114 2.90mm

Number of Positions :

20

Overall Contact Length :

0.650 16.51mm

MIL Conformance :

No

UL Flammability Code :

94V-0

Insulation Color :

Gray

Factory Lead Time :

7 Weeks

Rated Current (Signal) :

2A

Operating Temperature :

-55°C~125°C

Number of Conductors :

ONE

Contact Gender :

Male

Contact Material :

COPPER ALLOY

Number of Positions Loaded :

All

Pitch - Mating :

0.100 2.54mm

Row Spacing - Mating :

0.100 (2.54mm)

Packaging :

Bulk
