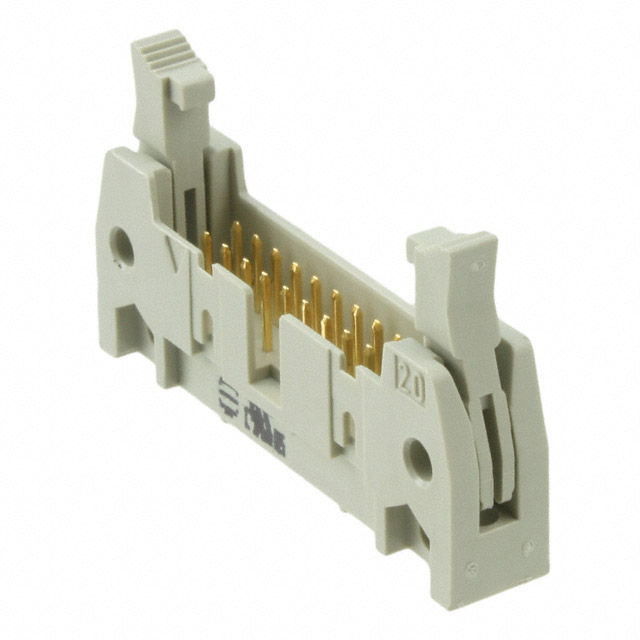

09185206903

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Number of Rows :

2

Lead Free :

Lead Free

Row Spacing - Mating :

0.100 (2.54mm)

Rated Current (Signal) :

2A

Additional Feature :

STANDARDS: IEC 60603-13; DIN EN 60603-13, POLARIZED

Body Breadth :

0.335 inch

Insulation Height :

0.335 8.51mm

Mount :

Through Hole

Lead Pitch :

2.54mm

Reference Standard :

UL

Contact Shape :

Square

Series :

SEK

Contact Type :

Male Pin

Color :

Grey

Contact Finish - Mating :

NOT SPECIFIED

Filter Feature :

No

Contact Gender :

Male

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Contact Resistance :

20mOhm

Number of Poles :

20

Voltage - Rated AC :

350V

RoHS Status :

ROHS3 Compliant

Reliability :

COMMERCIAL

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Working Voltage :

350V

Number Of PCB Rows :

2

Termination :

Solder

Connector Type :

Header

Style :

Board to Cable/Wire

Mounting Type :

Through Hole, Right Angle

Length :

45mm

Polarization Key :

POLARIZED HOUSING

Number of Conductors :

ONE

UL Flammability Code :

94V-0

Fastening Type :

Latch Lock/Eject Hooks, Long

Hole Diameter :

900 μm

Factory Lead Time :

4 Weeks

MIL Conformance :

No

Contact Length - Post :

0.114 2.90mm

Mating Contact Pitch :

0.1 inch

Packaging :

Tray

Contact Current Rating :

1A

IEC Conformance :

No

Pitch - Mating :

0.100 2.54mm

Mixed Contacts :

No

Shrouding :

Shrouded - 4 Wall

Material Flammability Rating :

UL94 V-0

Operating Temperature :

-55°C~125°C

Pbfree Code :

yes

Voltage - Rated DC :

350V

Contact Material :

COPPER ALLOY

Current Rating :

2A

Feature :

Keying Slot, Mounting Flange

REACH SVHC :

No SVHC

Orientation :

RIGHT ANGLE

DIN Conformance :

yes

Option :

GENERAL PURPOSE

Insulation Color :

Gray

Contact Length - Mating :

0.240 6.10mm

Depth :

25.75mm

Insulation Resistance :

1GOhm

Flammability Rating :

UL94 V-0

PCB Contact Pattern :

RECTANGULAR

Number of Positions Loaded :

All

Contact Plating :

Gold
