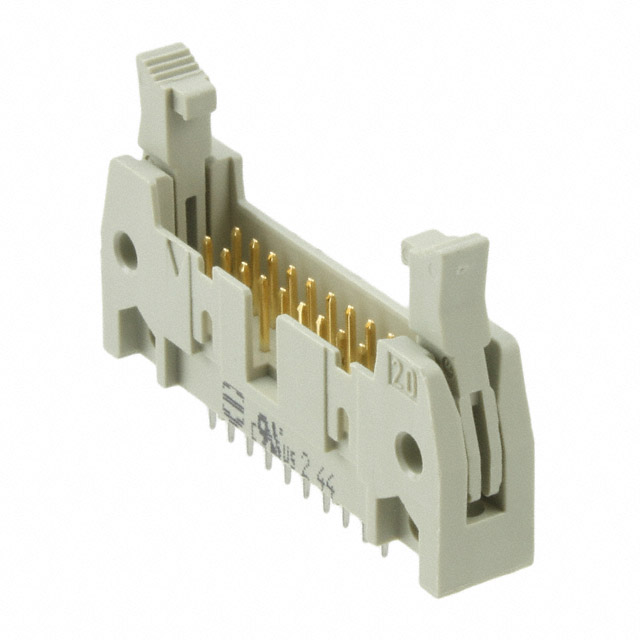

09185206902

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Dielectric Withstanding Voltage :

1000VAC V

Contact Material :

COPPER ALLOY

Contact Finish - Mating :

NOT SPECIFIED

Color :

Grey

Material Flammability Rating :

UL94 V-0

Filter Feature :

No

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Insulation Color :

Gray

Row Spacing - Mating :

0.100 (2.54mm)

Overall Contact Length :

0.713 18.10mm

Current Rating :

2A

Operating Temperature :

-55°C~125°C

Pitch - Mating :

0.100 2.54mm

Contact Finish - Post :

Tin

Contact Length - Post :

0.177 4.50mm

RoHS Status :

ROHS3 Compliant

Factory Lead Time :

7 Weeks

Reference Standard :

UL

Contact Shape :

Square

Contact Length - Mating :

0.240 6.10mm

Connector Type :

Header

Body Breadth :

0.331 inch

Number Of PCB Rows :

2

Depth :

8.5mm

UL Flammability Code :

94V-0

Number of Positions :

20

Lead Free :

Lead Free

Number of Positions Loaded :

All

Number of Rows :

2

Rated Current (Signal) :

1A

Polarization Key :

CTR W/GUIDE SLOTS

DIN Conformance :

yes

Insulation Resistance :

1000000000Ohm

REACH SVHC :

No SVHC

Orientation :

Straight

Fastening Type :

Latch Lock/Eject Hooks, Long

IEC Conformance :

No

Packaging :

Bulk

Contact Gender :

Male

PCB Contact Pattern :

RECTANGULAR

Additional Feature :

STANDARDS: DIN EN 60603-13; IEC 60603-13, POLARIZED

Shrouding :

Shrouded - 4 Wall

Pbfree Code :

yes

Length :

45mm

Feature :

Keying Slot, Mounting Flange

Mount :

Through Hole

Option :

GENERAL PURPOSE

MIL Conformance :

No

Series :

SEK

Insulation Height :

0.681 17.30mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Style :

Board to Cable/Wire

Number of Conductors :

ONE

Reliability :

COMMERCIAL

Mounting Type :

Through Hole

Mating Contact Pitch :

0.1 inch

Mixed Contacts :

No

Contact Type :

Male Pin

Termination :

Solder
