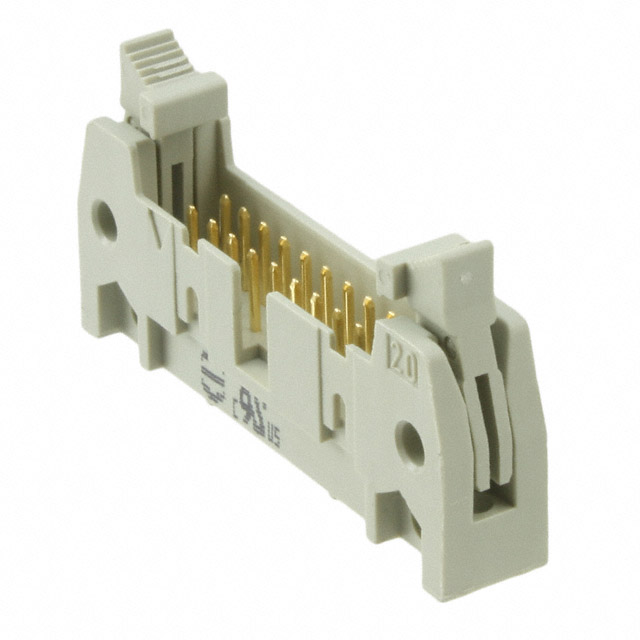

09185206901

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Number Of PCB Rows :

2

Polarization Key :

CTR W/GUIDE SLOTS

Body Depth :

0.681 inch

Row Spacing - Mating :

0.100 (2.54mm)

Contact Length - Post :

0.177 4.50mm

Number of Rows :

2

Insulation Resistance :

1000000000Ohm

Number of Positions :

20

PCB Contact Pattern :

RECTANGULAR

Body Breadth :

0.331 inch

Material Flammability Rating :

UL94 V-0

Mounting Type :

Through Hole, Right Angle

Fastening Type :

Latch Lock/Eject Hooks, Long

Packaging :

Bulk

Dielectric Withstanding Voltage :

1000VAC V

Number of Conductors :

ONE

Filter Feature :

No

Pbfree Code :

yes

Number of Positions Loaded :

All

IEC Conformance :

No

Additional Feature :

STANDARDS: IEC 60603-13; DIN EN 60603-13, POLARIZED

Contact Length - Mating :

0.240 6.10mm

Feature :

Keying Slot, Mounting Flange

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Termination :

Solder

Option :

GENERAL PURPOSE

Color :

Grey

MIL Conformance :

No

Pitch - Mating :

0.100 2.54mm

DIN Conformance :

yes

Mating Contact Pitch :

0.1 inch

Shrouding :

Shrouded - 4 Wall

Series :

SEK

Mixed Contacts :

No

Rated Current (Signal) :

1A

Reliability :

COMMERCIAL

Mount :

Through Hole

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Insulation Height :

0.335 8.51mm

Insulation Color :

Gray

Factory Lead Time :

7 Weeks

Contact Finish - Mating :

NOT SPECIFIED

Contact Shape :

Square

Contact Material :

COPPER ALLOY

Style :

Board to Cable/Wire

Operating Temperature :

-55°C~125°C

Length - Termination :

0.177 inch

Connector Type :

Header

RoHS Status :

ROHS3 Compliant

Reference Standard :

UL

UL Flammability Code :

94V-0

Contact Type :

Male Pin
