09185206323

Share

Or copy the link below:

Mfr.Part #
09185206323
Manufacturer
HARTING
Package / Case
Datasheet
Download
Description
CONN HEADER R/A 20POS 2.54MM
Stock
436
In Stock :
436

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
HARTING
Product Category :
Headers, Male Pins
Number Of PCB Rows :
2
Width :
33mm
Contact Resistance :
20mOhm
Additional Feature :
STANDARDS: DIN EN 60603-13; IEC 60603-13, POLARIZED
Pitch - Mating :
0.100 2.54mm
Contact Material :
COPPER ALLOY
Mixed Contacts :
No
Contact Shape :
Square
Fastening Type :
Latch Holder
Number of Conductors :
ONE
Depth :
11.99mm
Flammability Rating :
UL94 V-0
ECCN Code :
EAR99
Contact Type :
Male Pin
Number of Rows :
2
Housing Material :
Polybutylene
Insulation Height :
0.366 9.30mm
Filter Feature :
No
HTS Code :
8536.69.40.40
Contact Length - Mating :
0.242 6.15mm
Mounting Type :
Through Hole, Right Angle
Insulation Resistance :
1GOhm
Dielectric Withstanding Voltage :
1000VAC V
Row Spacing - Mating :
0.100 (2.54mm)
Hole Diameter :
900 μm
Series :
SEK
Lead Pitch :
2.54mm
Reference Standard :
UL
Max Current Rating :
1A
Feature :
Keying Slot
Contact Finish - Mating :
NOT SPECIFIED
Material Flammability Rating :
UL94 V-0
Working Voltage :
350V
Factory Lead Time :
4 Weeks
Option :
GENERAL PURPOSE
Packaging :
Bulk
Insulation Color :
Gray
Connector Type :
Header
DIN Conformance :
yes
Contact Current Rating :
1A
Mount :
Through Hole
Style :
Board to Cable/Wire
Contact Plating :
Gold
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Insulation Material :
Polybutylene Terephthalate (PBT), Glass Filled
Orientation :
RIGHT ANGLE
IEC Conformance :
yes
Number of Positions Loaded :
All
Weight :
4.679996g
Rated Current (Signal) :
1A
Length :
33.02mm
Voltage - Rated DC :
350V
Current Rating :
1A
Color :
Grey
Voltage - Rated AC :
350V
Pbfree Code :
yes
RoHS Status :
ROHS3 Compliant
Termination :
Solder
Test Voltage :
1kV
Contact Length - Post :
0.114 2.90mm
UL Flammability Code :
94V-0
MIL Conformance :
No
Operating Temperature :
-55°C~125°C
Reliability :
COMMERCIAL
Polarization Key :
CTR W/GUIDE SLOTS
PCB Contact Pattern :
RECTANGULAR
Mating Contact Pitch :
0.1 inch
Number of Poles :
20
Contact Gender :
Male
REACH SVHC :
No SVHC
Shrouding :
Shrouded - 4 Wall
Introducing Headers, Male Pins HARTING 09185206323 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Through Hole, Right Angle, Operating Temperature:-55°C~125°C, 09185206323 pinout, 09185206323 datasheet PDF, 09185206323 amp .Beyond Headers, Male Pins HARTING 09185206323 ,we also offer 3220-20-0100-00, 3020-26-0300-00, 3220-26-0300-00-TR, Our vast inventory has you covered. Contact us now for immediate solutions.

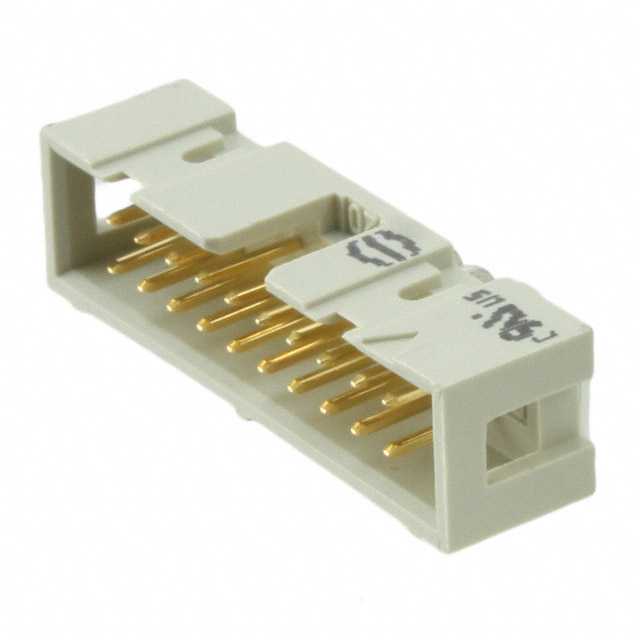

HARTING 09185206323


SEK Series 2-Row Header Solder Copper Alloy Bulk Through Hole, Right Angle NOT SPECIFIED Polybutylene Terephthalate (PBT), Glass Filled Board to Cable/Wire 0.366 9.30mm Height

09185206323 Overview


The product is packaged in Header.This device is mounted in the Through Hole, Right Angle position.It has been determined that a Bulk case is necessary to package the product.There is a product in the SEK Series.To name a few, there is also STANDARDS: DIN EN 60603-13; IEC 60603-13, POLARIZED.There are a number of advantages to its Keying Slot feature.Part Through Hole is mounted to the part.As a result, the device runs at -55°C~125°C Operating Temperature.

09185206323 Features


SEK series


09185206323 Applications


There are a lot of HARTING
09185206323 Rectangular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
