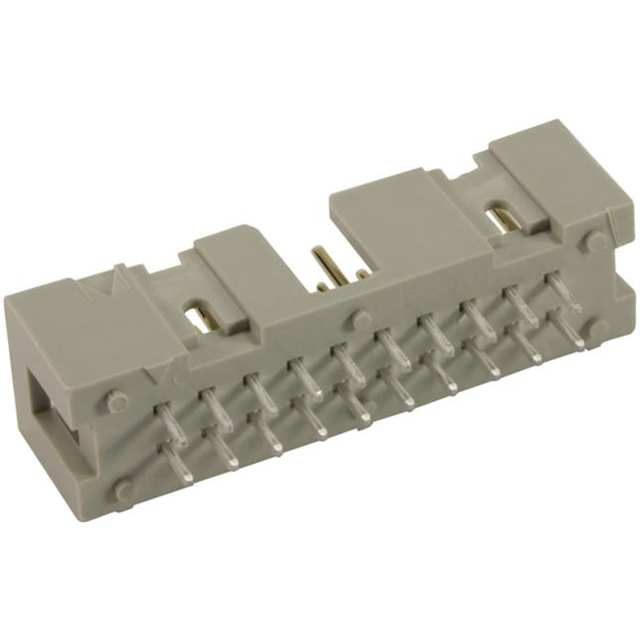

09185206322

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Pbfree Code :

yes

Contact Finish - Post :

Tin

Polarization Key :

POLARIZED HOUSING

Contact Resistance :

20mOhm

MIL Conformance :

No

Mounting Type :

Through Hole

Contact Gender :

Male

Mating Contact Pitch :

0.1 inch

Number of Positions :

20

Feature :

Keying Slot

Reliability :

COMMERCIAL

Mixed Contacts :

No

Option :

GENERAL PURPOSE

Filter Feature :

No

Mount :

Through Hole

Factory Lead Time :

7 Weeks

Shrouding :

Shrouded - 4 Wall

RoHS Status :

ROHS3 Compliant

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Series :

SEK

Contact Length - Mating :

0.240 6.10mm

PCB Contact Pattern :

RECTANGULAR

Contact Length - Post :

0.177 4.50mm

Additional Feature :

STANDARD: IEC 60603-13; DIN EN 60603-13, POLARIZED

Fastening Type :

Latch Holder

Current Rating :

1A

Insulation Height :

0.350 8.89mm

Number of Conductors :

ONE

Contact Material :

COPPER ALLOY

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Row Spacing - Mating :

0.100 (2.54mm)

Number of Positions Loaded :

All

Max Current Rating :

1A

Number of Rows :

2

Contact Shape :

Square

Length :

33.02mm

Orientation :

Straight

Pitch - Mating :

0.100 2.54mm

Depth :

9.2mm

Body Breadth :

0.366 inch

Material Flammability Rating :

UL94 V-0

UL Flammability Code :

94V-0

IEC Conformance :

yes

Color :

Grey

Housing Material :

Polybutylene

Rated Current (Signal) :

2A

Termination :

Solder

Reference Standard :

UL

Contact Plating :

Gold

Style :

Board to Cable/Wire

Operating Temperature :

-55°C~125°C

DIN Conformance :

yes

Insulation Color :

Gray

Packaging :

Bulk

Connector Type :

Header

Number Of PCB Rows :

2

Contact Type :

Male Pin

Contact Finish - Mating :

NOT SPECIFIED

Insulation :

Insulated
