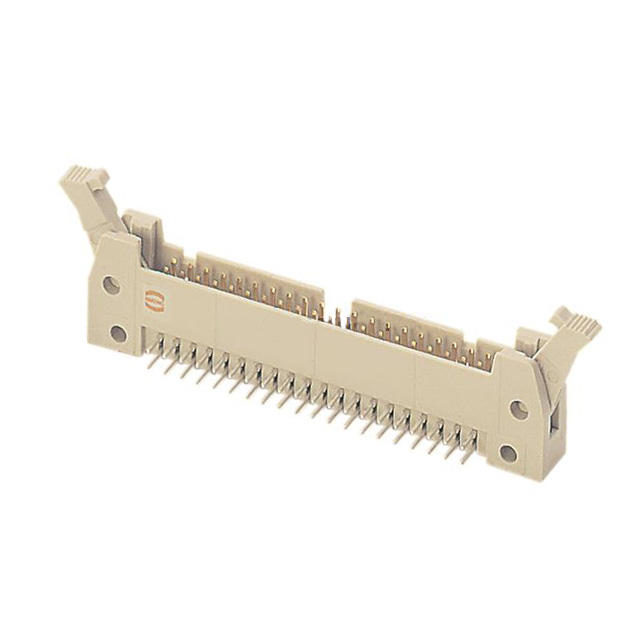

09185205903

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Mounting Type :

Through Hole, Right Angle

Operating Temperature :

-55°C~125°C

Rated Current (Signal) :

2A

Contact Length - Post :

0.114 2.90mm

Pitch - Mating :

0.100 2.54mm

Filter Feature :

No

Body Breadth :

0.335 inch

Reference Standard :

UL

Length :

33mm

Insulation Height :

0.335 8.51mm

Contact Finish - Post :

Tin

Contact Length - Mating :

0.240 6.10mm

Fastening Type :

Latch Lock/Eject Hooks, Long

Option :

GENERAL PURPOSE

Series :

SEK

Contact Shape :

Square

Insulation Resistance :

1000000000Ohm

Current Rating :

1A

Mount :

Through Hole

Contact Finish - Mating :

Gold

PCB Contact Pattern :

RECTANGULAR

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Mixed Contacts :

No

Contact Type :

Male Pin

Number Of PCB Rows :

2

Packaging :

Bulk

Pbfree Code :

yes

Style :

Board to Cable/Wire

UL Flammability Code :

94V-0

Number of Positions :

20

Number of Positions Loaded :

All

Mating Contact Pitch :

0.1 inch

IEC Conformance :

No

Row Spacing - Mating :

0.100 (2.54mm)

Shrouding :

Shrouded - 4 Wall

Depth :

9.2mm

RoHS Status :

ROHS3 Compliant

Insulation Color :

Gray

Feature :

Keying Slot, Mounting Flange

MIL Conformance :

No

Polarization Key :

POLARIZED HOUSING

Connector Type :

Header

Number of Rows :

2

Number of Conductors :

ONE

Plating Thickness :

30μin

REACH SVHC :

No SVHC

Contact Finish Thickness - Mating :

30.0μin 0.76μm

Contact Gender :

Male

Width :

8.5mm

Approval Agency :

IEC

Termination :

Solder

Contact Material :

COPPER ALLOY

DIN Conformance :

yes

Material Flammability Rating :

UL94 V-0

Orientation :

Straight

Reliability :

COMMERCIAL

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Factory Lead Time :

7 Weeks

Color :

Grey
