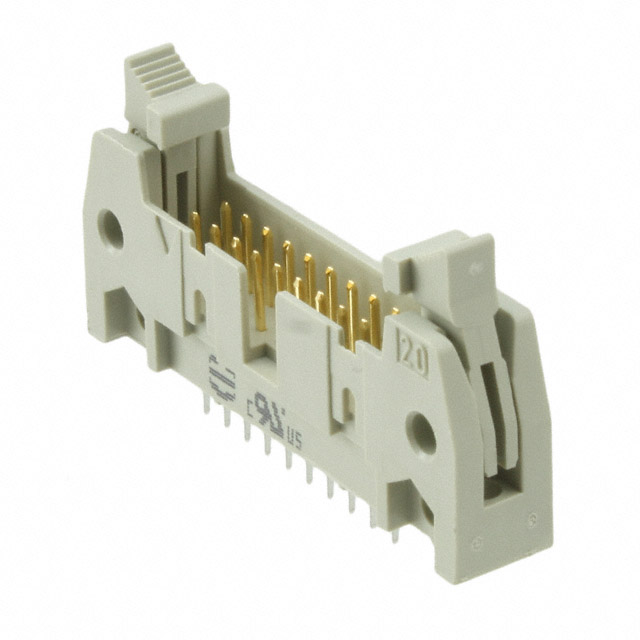

09185205901

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Pitch - Mating :

0.100 2.54mm

Plating Thickness :

30μin

RoHS Status :

ROHS3 Compliant

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Material Flammability Rating :

UL94 V-0

UL Flammability Code :

94V-0

Number of Positions Loaded :

All

Factory Lead Time :

7 Weeks

Mating Contact Pitch :

0.1 inch

Additional Feature :

STANDARDS: IEC 60603-13; DIN EN 60603-13, POLARIZED

Insulation Color :

Gray

PCB Contact Pattern :

RECTANGULAR

Mounting Type :

Through Hole, Right Angle

Contact Shape :

Square

Orientation :

RIGHT ANGLE

Row Spacing - Mating :

0.100 (2.54mm)

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Finish Thickness - Mating :

30.0μin 0.76μm

Pbfree Code :

yes

MIL Conformance :

No

Series :

SEK

Number of Conductors :

ONE

Body Depth :

0.681 inch

HTS Code :

8536.69.40.40

Option :

GENERAL PURPOSE

Insulation Height :

0.335 8.51mm

Feature :

Keying Slot, Mounting Flange

Number Of PCB Rows :

2

Body Breadth :

0.331 inch

Fastening Type :

Latch Lock/Eject Hooks, Long

Mount :

Through Hole

Mixed Contacts :

No

Style :

Board to Cable/Wire

Termination :

Solder

Dielectric Withstanding Voltage :

1000VAC V

DIN Conformance :

yes

Number of Rows :

2

Current Rating :

1A

Shrouding :

Shrouded - 4 Wall

Contact Type :

Male Pin

Reliability :

COMMERCIAL

Operating Temperature :

-55°C~125°C

Insulation Resistance :

1000000000Ohm

Number of Positions :

20

IEC Conformance :

No

Packaging :

Bulk

Rated Current (Signal) :

1A

Connector Type :

Header

Polarization Key :

CTR W/GUIDE SLOTS

Filter Feature :

No

Contact Finish - Post :

Tin

Length - Termination :

0.177 inch

Contact Material :

COPPER ALLOY

Contact Length - Mating :

0.240 6.10mm

Contact Length - Post :

0.177 4.50mm

Voltage - Rated :

500V

Reference Standard :

UL

Contact Finish - Mating :

Gold

ECCN Code :

EAR99

Color :

Grey
