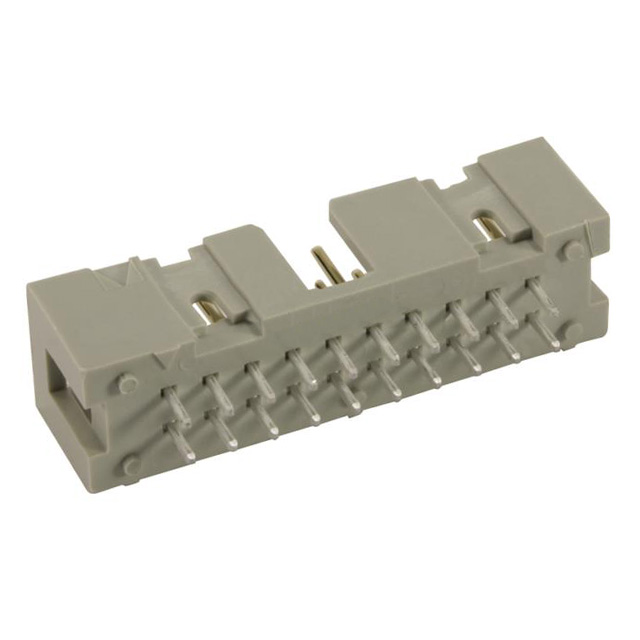

09185205324

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Polarization Key :

POLARIZED HOUSING

Width :

9.2mm

Plating Thickness :

30μin

Shrouding :

Shrouded - 4 Wall

MIL Conformance :

No

Depth :

9.2mm

Filter Feature :

No

Material Flammability Rating :

UL94 V-0

Contact Length - Mating :

0.240 6.10mm

Reliability :

COMMERCIAL

Body Breadth :

0.366 inch

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Pitch - Mating :

0.100 2.54mm

Insulation Color :

Gray

RoHS Status :

ROHS3 Compliant

Factory Lead Time :

7 Weeks

Contact Resistance :

20mOhm

Operating Temperature :

-55°C~125°C

Gender :

Male

Mating Contact Pitch :

0.1 inch

Mixed Contacts :

No

Insulation Resistance :

1000000000Ohm

Contact Length - Post :

0.114 2.90mm

Color :

Grey

Contact Finish - Mating :

Gold

UL Flammability Code :

94V-0

Packaging :

Bulk

Pbfree Code :

yes

Max Current Rating :

1A

Termination :

Solder

Connector Type :

Header

Number of Positions Loaded :

All

Row Spacing - Mating :

0.100 (2.54mm)

Contact Finish - Post :

Tin

Mount :

Through Hole

Approval Agency :

IEC

Contact Finish Thickness - Mating :

30.0μin 0.76μm

Number of Conductors :

ONE

PCB Contact Pattern :

RECTANGULAR

Style :

Board to Cable/Wire

Series :

SEK

Number of Positions :

20

Insulation Height :

0.350 8.89mm

Contact Type :

Male Pin

Length :

33.02mm

Contact Shape :

Square

Current Rating :

2A

Number of Rows :

2

IEC Conformance :

yes

Option :

GENERAL PURPOSE

Feature :

Keying Slot

Contact Material :

COPPER ALLOY

Fastening Type :

Latch Holder

Mounting Type :

Through Hole

Number Of PCB Rows :

2

Orientation :

Straight

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Reference Standard :

UL

DIN Conformance :

yes

Rated Current (Signal) :

2A

Housing Material :

Polybutylene
