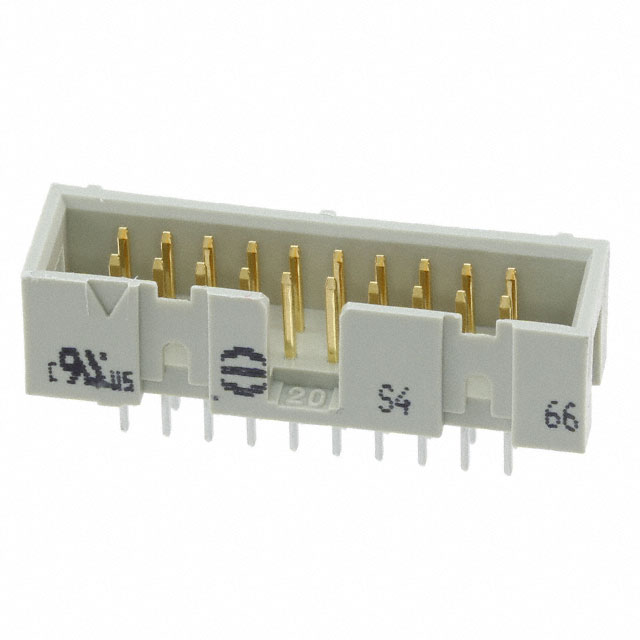

09185205322

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Contact Length - Post :

0.177 4.50mm

Pbfree Code :

yes

Plating Thickness :

30μin

RoHS Status :

ROHS3 Compliant

PCB Contact Pattern :

RECTANGULAR

Reliability :

COMMERCIAL

Body Breadth :

0.366 inch

IEC Conformance :

yes

Number of Rows :

2

Series :

SEK

Termination :

Solder

Length - Termination :

0.177 inch

Pitch - Mating :

0.100 2.54mm

Row Spacing - Mating :

0.100 (2.54mm)

Contact Material :

COPPER ALLOY

Insulation Height :

0.350 8.89mm

Insulation Resistance :

1000000000Ohm

Option :

GENERAL PURPOSE

Fastening Type :

Latch Holder

Contact Shape :

Square

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Color :

Grey

Contact Finish - Mating :

Gold

Additional Feature :

STANDARD: IEC 60603-13; DIN EN 60603-13, POLARIZED

Packaging :

Bulk

Number of Positions :

20

Rated Current (Signal) :

2A

Style :

Board to Cable/Wire

Mixed Contacts :

No

Number of Positions Loaded :

All

UL Flammability Code :

94V-0

Feature :

Keying Slot

Mounting Type :

Through Hole

MIL Conformance :

No

Connector Type :

Header

Contact Finish Thickness - Mating :

30.0μin 0.76μm

Contact Finish - Post :

Tin

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mating Contact Pitch :

0.1 inch

Number Of PCB Rows :

2

DIN Conformance :

yes

Body Length or Diameter :

1.307 inch

Reference Standard :

UL

Polarization Key :

POLARIZED HOUSING

Shrouding :

Shrouded - 4 Wall

Contact Type :

Male Pin

Insulation Color :

Gray

Operating Temperature :

-55°C~125°C

Factory Lead Time :

7 Weeks

Number of Conductors :

ONE

Filter Feature :

No

Contact Length - Mating :

0.240 6.10mm

Material Flammability Rating :

UL94 V-0

Mount :

Through Hole
