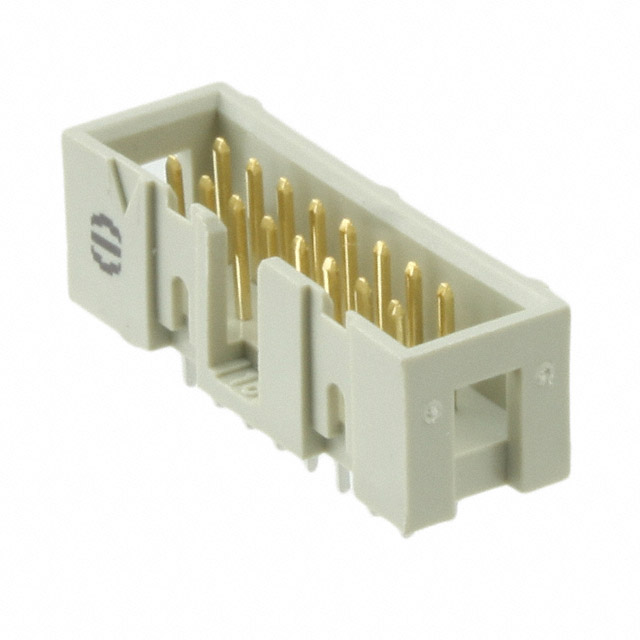

09185167324

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Series :

SEK

Mating Contact Pitch :

0.1 inch

Color :

Grey

MIL Conformance :

No

IEC Conformance :

yes

Voltage - Rated DC :

350V

Contact Finish - Mating :

NOT SPECIFIED

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Material Flammability Rating :

UL94 V-0

Option :

GENERAL PURPOSE

Lead Pitch :

2.54mm

Length :

27.94mm

Working Voltage :

350V

Additional Feature :

STANDARD: IEC 60603-13; DIN EN 60603-13, POLARIZED

Insulation Height :

0.350 8.89mm

Operating Temperature :

-55°C~125°C

Rated Current (Signal) :

2A

DIN Conformance :

yes

Number Of PCB Rows :

2

Reliability :

COMMERCIAL

Polarization Key :

POLARIZED HOUSING

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Contact Plating :

Gold

Number of Poles :

16

Contact Material :

COPPER ALLOY

Style :

Board to Cable/Wire

Body Breadth :

0.366 inch

Mount :

Through Hole

PCB Contact Pattern :

RECTANGULAR

Hole Diameter :

900 μm

Mounting Type :

Through Hole

Contact Length - Mating :

0.240 6.10mm

Number of Rows :

2

Pbfree Code :

yes

Contact Length - Post :

0.114 2.90mm

RoHS Status :

ROHS3 Compliant

Insulation Color :

Gray

Packaging :

Tray

REACH SVHC :

No SVHC

Number of Positions Loaded :

All

Connector Type :

Header

Mixed Contacts :

No

Reference Standard :

UL

Contact Type :

Male Pin

Termination :

Solder

Contact Shape :

Square

Feature :

Keying Slot

Fastening Type :

Latch Holder

Row Spacing - Mating :

0.100 (2.54mm)

Depth :

9.2mm

Orientation :

Straight

Filter Feature :

No

Number of Conductors :

ONE

Length - Tail :

2.9mm

Voltage - Rated AC :

350V

Insulation Resistance :

1GOhm

Durability :

50 Cycles

Factory Lead Time :

4 Weeks

Current Rating :

1A

Flammability Rating :

UL94 V-0

Pitch - Mating :

0.100 2.54mm

Contact Finish - Post :

Tin

UL Flammability Code :

94V-0

Contact Resistance :

20mOhm

Shrouding :

Shrouded - 4 Wall
