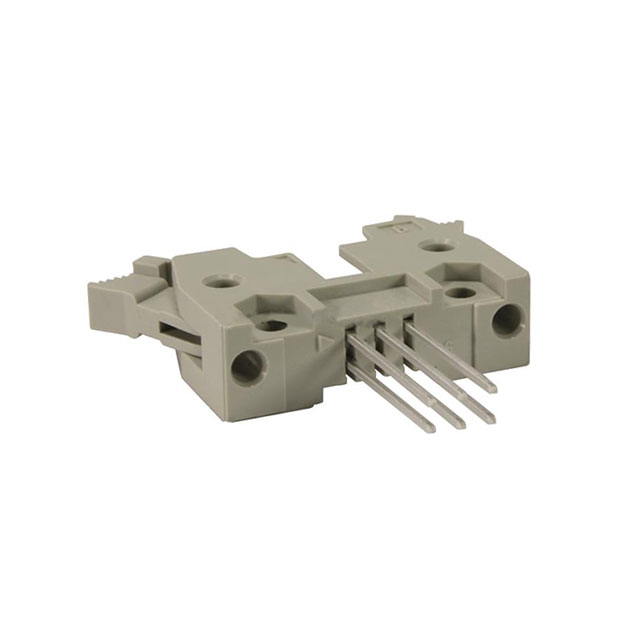

09185166927
- Mfr.Part #
- 09185166927
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 16POS 2.54MM
- Stock
- 2,953
- In Stock :
- 2,953
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Headers, Male Pins
- Feature :
- Keying Slot, Mounting Flange
- PCB Contact Pattern :
- RECTANGULAR
- Number Of PCB Rows :
- 2
- Pbfree Code :
- yes
- Material Flammability Rating :
- UL94 V-0
- Contact Length - Mating :
- 0.228 5.80mm
- Shrouding :
- Shrouded - 4 Wall
- Fastening Type :
- Push-Pull
- Insulation Resistance :
- 1000000000Ohm
- Mating Contact Pitch :
- 0.1 inch
- Insulation Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Termination :
- Wire Wrap
- DIN Conformance :
- yes
- Additional Feature :
- STANDARDS: IEC 60603-1; DIN EN 60603-13, POLARIZED
- Body Breadth :
- 0.331 inch
- Number of Rows :
- 2
- Connector Type :
- Header
- Reliability :
- COMMERCIAL
- Color :
- Beige
- Rated Current (Signal) :
- 1A
- Series :
- SEK
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Contact Type :
- Male Pin
- ECCN Code :
- EAR99
- Overall Contact Length :
- 1.126 28.60mm
- Option :
- GENERAL PURPOSE
- HTS Code :
- 8536.69.40.40
- IEC Conformance :
- yes
- MIL Conformance :
- No
- Operating Temperature :
- -55°C~125°C
- Contact Length - Post :
- 0.591 15.00mm
- Contact Material :
- COPPER ALLOY
- Number of Conductors :
- ONE
- Insulation Color :
- Gray
- Filter Feature :
- No
- Packaging :
- Bulk
- Body Depth :
- 0.681 inch
- Mount :
- Through Hole
- Contact Finish - Mating :
- NOT SPECIFIED
- Reference Standard :
- UL
- Pitch - Mating :
- 0.100 2.54mm
- Insulation Height :
- 0.681 17.30mm
- Number of Positions Loaded :
- All
- Mixed Contacts :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Polarization Key :
- CTR W/GUIDE SLOTS
- Contact Finish - Post :
- Tin
- Mounting Type :
- Through Hole
- Number of Positions :
- 16
- Factory Lead Time :
- 7 Weeks
- Body Length or Diameter :
- 1.559 inch
- Length - Termination :
- 0.591 inch
- Style :
- Board to Cable/Wire
- Dielectric Withstanding Voltage :
- 1000VAC V
- RoHS Status :
- ROHS3 Compliant
- UL Flammability Code :
- 94V-0
- Contact Shape :
- Square
- Datasheets
- 09185166927
09185166927 Documents

SEK Series 2-Row Header Wire Wrap Copper Alloy Bulk Through Hole NOT SPECIFIED Polybutylene Terephthalate (PBT), Glass Filled 16-Position Board to Cable/Wire 0.681 17.30mm Height
09185166927 Overview
Packaging is in the form of Header.This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the SEK Series.Other features include STANDARDS: IEC 60603-1; DIN EN 60603-13, POLARIZED, to name just a few.Several benefits come from the Keying Slot, Mounting Flange feature.There is a mounting hole at Through Hole.Devices operate at -55°C~125°C operating temperatures.
09185166927 Features
SEK series
09185166927 Applications
There are a lot of HARTING
09185166927 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
