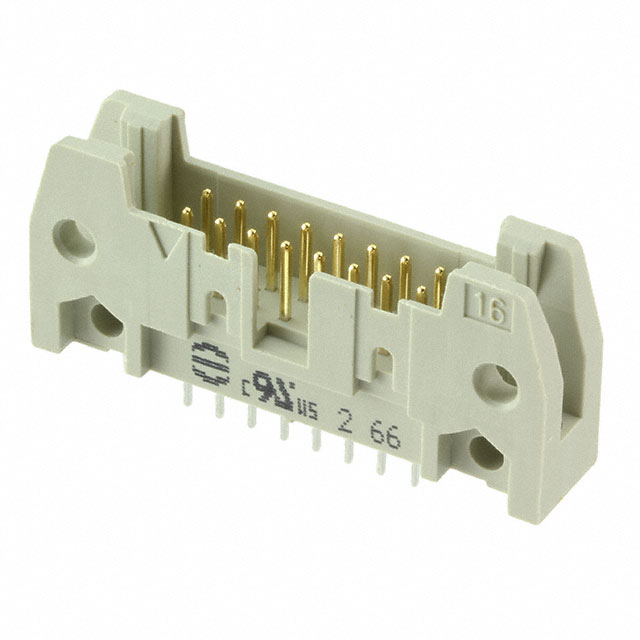

09185166924

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Contact Gender :

Male

PCB Contact Pattern :

RECTANGULAR

Contact Material :

COPPER ALLOY

Number Of PCB Rows :

2

Contact Finish - Post :

Tin

Overall Contact Length :

0.650 16.51mm

HTS Code :

8536.69.40.40

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Color :

Grey

Operating Temperature :

-55°C~125°C

Insulation Resistance :

1000000000Ohm

Reference Standard :

UL

Additional Feature :

STANDARDS: DIN EN 60603-13; IEC 60603-13, POLARIZED

Housing Material :

Polyester

Contact Finish - Mating :

NOT SPECIFIED

Contact Length - Mating :

0.240 6.10mm

Contact Length - Post :

0.114 2.90mm

Mixed Contacts :

No

Pbfree Code :

yes

Number of Rows :

2

Reliability :

COMMERCIAL

Connector Type :

Header

Factory Lead Time :

7 Weeks

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

IEC Conformance :

yes

Packaging :

Bulk

Contact Type :

Male Pin

RoHS Status :

ROHS3 Compliant

Number of Positions Loaded :

All

Mounting Type :

Through Hole

Rated Current (Signal) :

2A

Fastening Type :

Push-Pull

Current Rating :

2A

UL Flammability Code :

94V-0

Number of Positions :

16

Mount :

Through Hole

Pitch - Mating :

0.100 2.54mm

Mating Contact Pitch :

0.1 inch

Shrouding :

Shrouded - 4 Wall

Length - Termination :

0.114 inch

Body Depth :

0.681 inch

Termination :

Solder

Contact Shape :

Square

Feature :

Keying Slot, Mounting Flange

Number of Conductors :

ONE

Material Flammability Rating :

UL94 V-0

Option :

GENERAL PURPOSE

Insulation Color :

Gray

Body Length or Diameter :

1.571 inch

Filter Feature :

No

ECCN Code :

EAR99

Series :

SEK

Row Spacing - Mating :

0.100 (2.54mm)

Body Breadth :

0.335 inch

DIN Conformance :

yes

Style :

Board to Cable/Wire

Orientation :

Straight

Polarization Key :

POLARIZED HOUSING

MIL Conformance :

No

Insulation Height :

0.681 17.30mm
