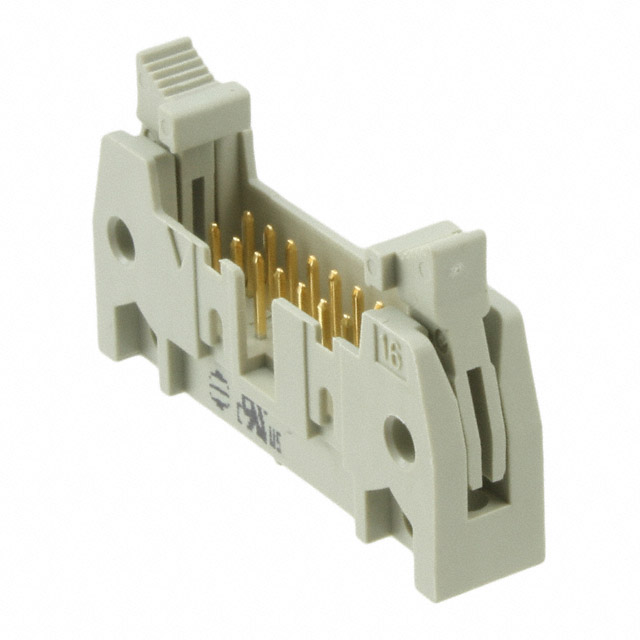

09185166913

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Insulation Height :

0.335 8.51mm

Mount :

Through Hole

IEC Conformance :

yes

Contact Length - Mating :

0.240 6.10mm

Row Spacing - Mating :

0.100 (2.54mm)

MIL Conformance :

No

Style :

Board to Cable/Wire

DIN Conformance :

yes

Contact Plating :

Gold

Insulation Color :

Gray

Mounting Type :

Through Hole, Right Angle

Housing Material :

Polybutylene

Number of Positions Loaded :

All

Current Rating :

2A

Contact Finish - Mating :

NOT SPECIFIED

Contact Type :

Male Pin

RoHS Status :

ROHS3 Compliant

Factory Lead Time :

4 Weeks

Connector Type :

Header

Contact Length - Post :

0.114 2.90mm

Series :

SEK

Option :

GENERAL PURPOSE

Termination :

Solder

Contact Resistance :

20mOhm

Material Flammability Rating :

UL94 V-0

Body Breadth :

0.331 inch

Polarization Key :

CTR W/GUIDE SLOTS

Number of Rows :

2

Packaging :

Tray

Rated Current (Signal) :

1A

Filter Feature :

No

Number of Conductors :

ONE

Pbfree Code :

yes

Mixed Contacts :

No

Pitch - Mating :

0.100 2.54mm

Reference Standard :

UL

Orientation :

RIGHT ANGLE

Contact Gender :

Male

UL Flammability Code :

94V-0

Depth :

23.3mm

REACH SVHC :

No SVHC

Dielectric Withstanding Voltage :

1000VAC V

Contact Shape :

Square

Max Current Rating :

1A

Additional Feature :

STANDARDS: IEC 60603-13; DIN EN 60603-13, POLARIZED

Fastening Type :

Latch Lock/Eject Hooks, Short

Length :

39.9mm

Insulation Resistance :

1000000000Ohm

Shrouding :

Shrouded - 4 Wall

Number Of PCB Rows :

2

Number of Positions :

16

Reliability :

COMMERCIAL

Feature :

Keying Slot, Mounting Flange

Mating Contact Pitch :

0.1 inch

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

PCB Contact Pattern :

RECTANGULAR

Operating Temperature :

-55°C~125°C

Contact Material :

COPPER ALLOY
