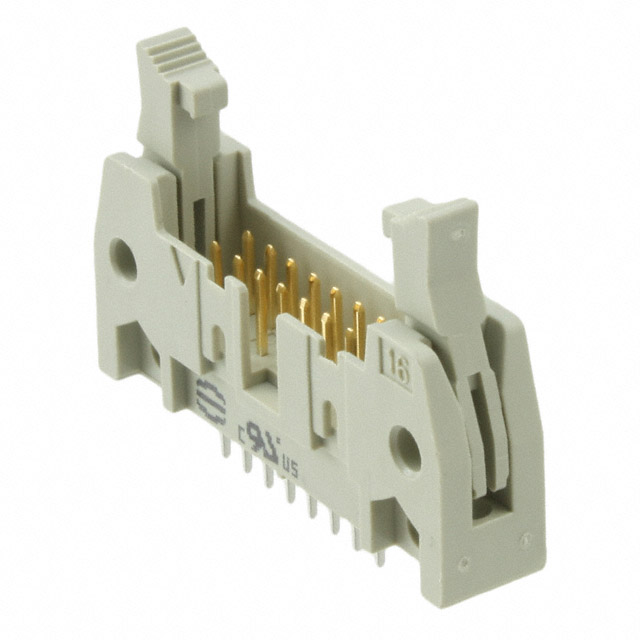

09185166904

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Voltage - Rated DC :

350V

Connector Type :

Header

Pitch - Mating :

0.100 2.54mm

ECCN Code :

EAR99

Contact Resistance :

20mOhm

Polarization Key :

CTR W/GUIDE SLOTS

Contact Length - Post :

0.114 2.90mm

Mixed Contacts :

No

Insulation Height :

0.681 17.30mm

Contact Shape :

Square

Filter Feature :

No

HTS Code :

8536.69.40.40

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number Of PCB Rows :

2

Body Breadth :

0.331 inch

UL Flammability Code :

94V-0

Orientation :

Straight

Reliability :

COMMERCIAL

Flammability Rating :

UL94 V-0

Insulation Resistance :

1GOhm

Row Spacing - Mating :

0.100 (2.54mm)

Dielectric Withstanding Voltage :

1000VAC V

Material Flammability Rating :

UL94 V-0

Series :

SEK

Factory Lead Time :

4 Weeks

Termination :

Solder

Packaging :

Tray

Lead Length :

29mm

Mounting Type :

Through Hole

Style :

Board to Cable/Wire

DIN Conformance :

yes

Overall Contact Length :

0.650 16.51mm

Additional Feature :

STANDARDS: DIN EN 60603-13; IEC 60603-13, POLARIZED

Option :

GENERAL PURPOSE

Hole Diameter :

900 μm

Rated Current (Signal) :

1A

Contact Length - Mating :

0.228 5.80mm

Contact Current Rating :

1A

Insulation Color :

Gray

Length :

39.9mm

Pbfree Code :

yes

Number of Poles :

16

Lead Pitch :

2.54mm

Fastening Type :

Latch Lock/Eject Hooks, Long

MIL Conformance :

No

PCB Contact Pattern :

RECTANGULAR

Operating Temperature :

-55°C~125°C

Depth :

8.5mm

Number of Positions Loaded :

All

Color :

Grey

Feature :

Keying Slot, Mounting Flange

Contact Plating :

Gold

Working Voltage :

350V

Contact Finish - Post :

Tin

Current Rating :

1A

Number of Conductors :

ONE

Width :

53mm

RoHS Status :

ROHS3 Compliant

IEC Conformance :

No

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Voltage - Rated AC :

350V

Contact Material :

COPPER ALLOY

Reference Standard :

UL

Number of Rows :

2

Contact Type :

Male Pin

Mount :

Through Hole

Mating Contact Pitch :

0.1 inch

Height :

28.65mm

Shrouding :

Shrouded - 4 Wall

REACH SVHC :

No SVHC

Contact Finish - Mating :

NOT SPECIFIED

Package / Case :

SMC
