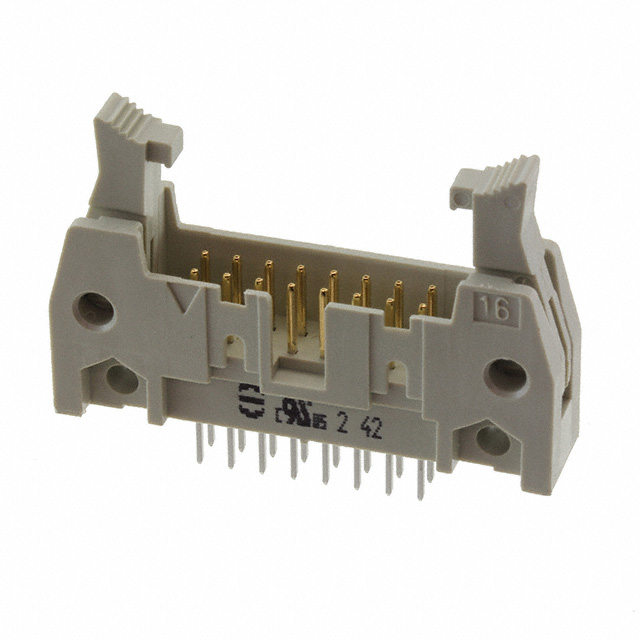

09185166902

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Mating Contact Pitch :

0.1 inch

Additional Feature :

STANDARDS: DIN EN 60603-13; IEC 60603-13, POLARIZED

UL Flammability Code :

94V-0

Depth :

8.5mm

Reference Standard :

UL

Contact Material :

COPPER ALLOY

Shrouding :

Shrouded - 4 Wall

Rated Current (Signal) :

1A

Termination :

Solder

Gender :

Male

Mixed Contacts :

No

Mounting Type :

Through Hole

Contact Type :

Male Pin

Fastening Type :

Latch Lock/Eject Hooks, Long

IEC Conformance :

No

Connector Type :

Header

Contact Finish - Post :

Tin

Series :

SEK

Number Of PCB Rows :

2

Contact Length - Mating :

0.240 6.10mm

Feature :

Keying Slot, Mounting Flange

Color :

Grey

Insulation Height :

0.681 17.30mm

Number of Positions Loaded :

All

Material Flammability Rating :

UL94 V-0

Number of Conductors :

ONE

ECCN Code :

EAR99

Orientation :

Straight

Row Spacing - Mating :

0.100 (2.54mm)

Overall Contact Length :

0.713 18.10mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Option :

GENERAL PURPOSE

Insulation Resistance :

1000000000Ohm

Contact Length - Post :

0.177 4.50mm

Factory Lead Time :

7 Weeks

MIL Conformance :

No

Body Breadth :

0.331 inch

Contact Shape :

Square

Dielectric Withstanding Voltage :

1000VAC V

Insulation Color :

Gray

Number of Positions :

16

Mount :

Through Hole

HTS Code :

8536.69.40.40

RoHS Status :

ROHS3 Compliant

Contact Finish - Mating :

NOT SPECIFIED

Filter Feature :

No

DIN Conformance :

yes

Polarization Key :

CTR W/GUIDE SLOTS

Pbfree Code :

yes

Number of Rows :

2

PCB Contact Pattern :

RECTANGULAR

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Length :

39.9mm

Packaging :

Bulk

Pitch - Mating :

0.100 2.54mm

Style :

Board to Cable/Wire

Operating Temperature :

-55°C~125°C

REACH SVHC :

No SVHC

Reliability :

COMMERCIAL
