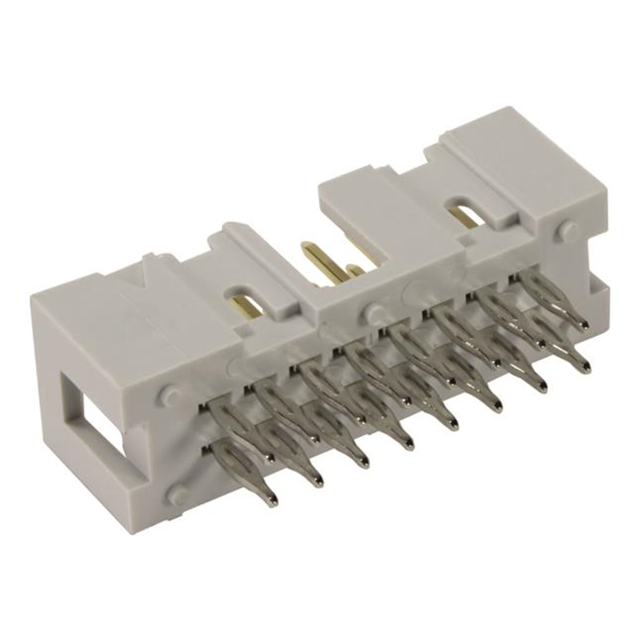

09185166329

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Current Rating :

2A

DIN Conformance :

yes

Style :

Board to Cable/Wire

Polarization Key :

POLARIZED HOUSING

Contact Length - Post :

0.217 5.51mm

REACH SVHC :

No SVHC

Reliability :

COMMERCIAL

Pitch - Mating :

0.100 2.54mm

Orientation :

Straight

Factory Lead Time :

7 Weeks

Insulation Resistance :

1000000000Ohm

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Operating Temperature (Min) :

-55°C

Termination :

Press-Fit, Solder

Body Breadth :

0.366 inch

UL Flammability Code :

94V-0

Insulation Height :

0.350 8.89mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Connector Type :

Header

Number of Positions Loaded :

All

Series :

SEK

Number of Rows :

2

Row Spacing - Mating :

0.100 (2.54mm)

Feature :

Keying Slot

Contact Length - Mating :

0.240 6.10mm

Contact Finish - Post :

Tin

Contact Finish - Mating :

NOT SPECIFIED

Rated Current (Signal) :

2A

Contact Gender :

Male

Material Flammability Rating :

UL94 V-0

Mounting Type :

Through Hole

Number of Conductors :

ONE

IEC Conformance :

No

PCB Contact Pattern :

RECTANGULAR

Reference Standard :

UL

MIL Conformance :

No

Insulation Color :

Gray

Option :

GENERAL PURPOSE

Filter Feature :

No

Fastening Type :

Push-Pull

Mixed Contacts :

No

Shrouding :

Shrouded - 4 Wall

RoHS Status :

ROHS3 Compliant

Body Length or Diameter :

1.106 inch

Color :

Grey

Pbfree Code :

yes

Contact Type :

Male Pin

Contact Material :

COPPER ALLOY

Packaging :

Bulk

Number of Positions :

16

Mating Contact Pitch :

0.1 inch

Operating Temperature (Max) :

105°C

Contact Shape :

Square

Number Of PCB Rows :

2

Mount :

Through Hole
