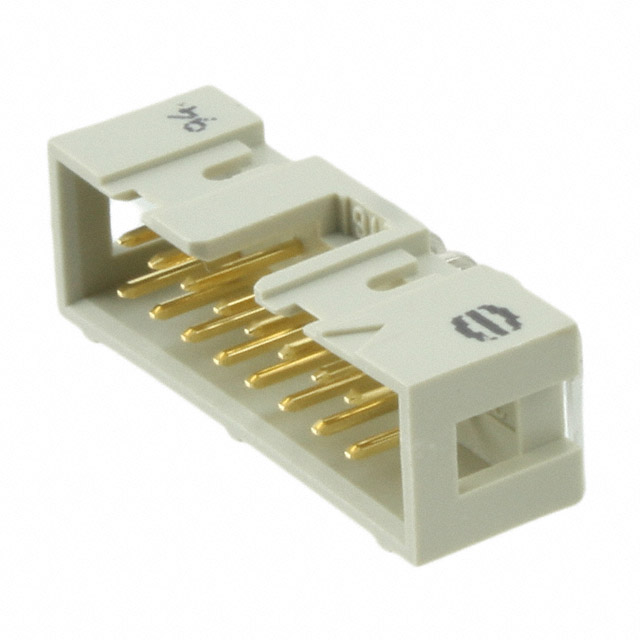

09185166323

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Color :

Grey

Contact Finish - Mating :

NOT SPECIFIED

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Current Rating :

1A

HTS Code :

8536.69.40.40

Number of Poles :

16

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Lead Pitch :

2.54mm

Working Voltage :

350V

Orientation :

RIGHT ANGLE

Mounting Type :

Through Hole, Right Angle

Number of Positions Loaded :

All

Contact Material :

COPPER ALLOY

Hole Diameter :

900 μm

Flammability Rating :

UL94 V-0

Termination :

Solder

DIN Conformance :

yes

Reference Standard :

UL

Shrouding :

Shrouded - 4 Wall

Height :

12.2mm

Insulation Height :

0.366 9.30mm

RoHS Status :

ROHS3 Compliant

Mixed Contacts :

No

Number Of PCB Rows :

2

REACH SVHC :

No SVHC

Contact Gender :

Male

Housing Material :

Polybutylene

Pbfree Code :

yes

IEC Conformance :

yes

Width :

27.9mm

Contact Shape :

Square

Lead Length :

29mm

Factory Lead Time :

4 Weeks

Length :

27.94mm

MIL Conformance :

No

Feature :

Keying Slot

Insulation Color :

Gray

Operating Temperature :

-55°C~125°C

Test Voltage :

1kV

Mating Contact Pitch :

0.1 inch

Contact Resistance :

20mOhm

Reliability :

COMMERCIAL

Connector Type :

Header

Material Flammability Rating :

UL94 V-0

Filter Feature :

No

PCB Contact Pattern :

RECTANGULAR

Lead Free :

Lead Free

Contact Plating :

Gold

Mount :

Through Hole

Additional Feature :

STANDARDS: DIN EN 60603-13; IEC 60603-13, POLARIZED

Polarization Key :

CTR W/GUIDE SLOTS

ECCN Code :

EAR99

Pitch - Mating :

0.100 2.54mm

Current Rating :

1A

Voltage - Rated DC :

350V

Number of Conductors :

ONE

Voltage - Rated AC :

350V

Dielectric Withstanding Voltage :

1000VAC V

Contact Length - Mating :

0.242 6.15mm

Fastening Type :

Latch Holder

Contact Length - Post :

0.114 2.90mm

Number of Rows :

2

Max Current Rating :

1A

Series :

SEK

UL Flammability Code :

94V-0

Style :

Board to Cable/Wire

Contact Type :

Male Pin

Rated Current (Signal) :

1A

Packaging :

Tray

Depth :

11.99mm

Row Spacing - Mating :

0.100 (2.54mm)

Insulation Resistance :

1GOhm

Option :

GENERAL PURPOSE
