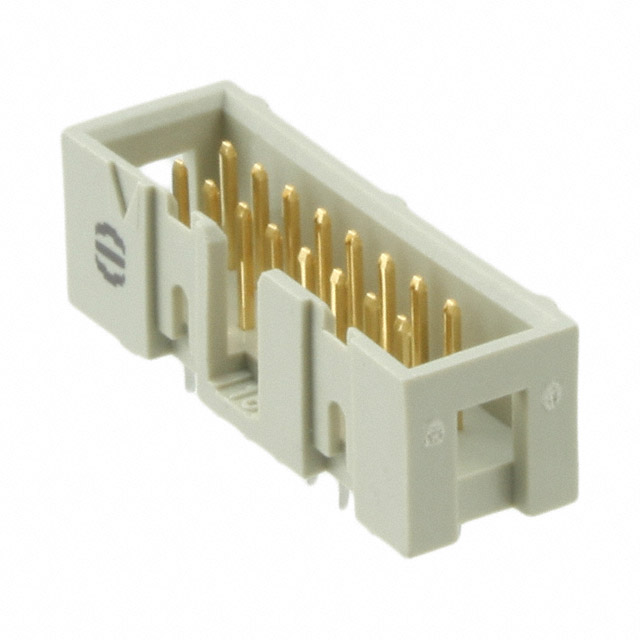

09185166322

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Contact Type :

Male Pin

Shrouding :

Shrouded - 4 Wall

Operating Temperature :

-55°C~125°C

Additional Feature :

STANDARD: IEC 60603-13; DIN EN 60603-13, POLARIZED

RoHS Status :

ROHS3 Compliant

Contact Shape :

Square

DIN Conformance :

yes

Body Length or Diameter :

1.106 inch

Number Of PCB Rows :

2

Body Breadth :

0.366 inch

Contact Finish - Post :

Tin

Series :

SEK

Reliability :

COMMERCIAL

Number of Positions :

16

Connector Type :

Header

Contact Material :

COPPER ALLOY

Number of Conductors :

ONE

IEC Conformance :

yes

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Mating Contact Pitch :

0.1 inch

Mount :

Through Hole

Pbfree Code :

yes

Row Spacing - Mating :

0.100 (2.54mm)

UL Flammability Code :

94V-0

Contact Length - Mating :

0.240 6.10mm

Number of Positions Loaded :

All

Option :

GENERAL PURPOSE

Insulation Resistance :

1000000000Ohm

Insulation Color :

Gray

Number of Rows :

2

Material Flammability Rating :

UL94 V-0

Reference Standard :

UL

MIL Conformance :

No

Insulation Height :

0.350 8.89mm

Color :

Grey

Length - Termination :

0.177 inch

Factory Lead Time :

7 Weeks

Packaging :

Bulk

Mounting Type :

Through Hole

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Filter Feature :

No

Polarization Key :

POLARIZED HOUSING

Style :

Board to Cable/Wire

Contact Length - Post :

0.177 4.50mm

Feature :

Keying Slot

Fastening Type :

Latch Holder

Mixed Contacts :

No

Pitch - Mating :

0.100 2.54mm

Contact Finish - Mating :

NOT SPECIFIED

Rated Current (Signal) :

2A

PCB Contact Pattern :

RECTANGULAR

Termination :

Solder
