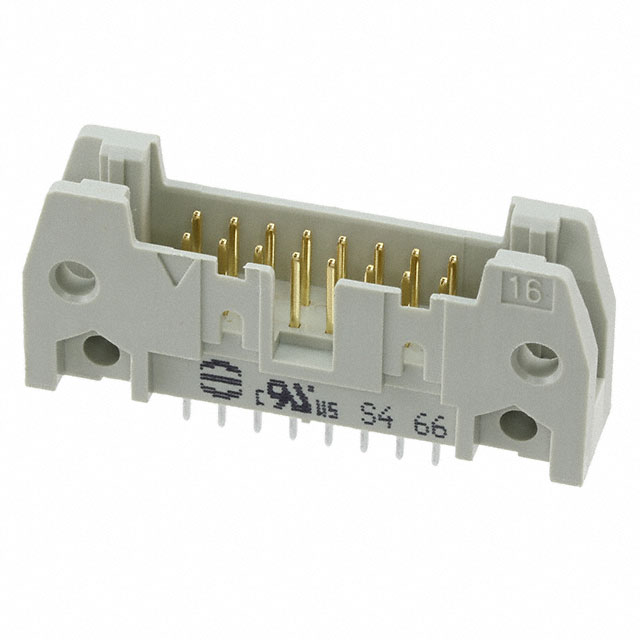

09185165924

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Polarization Key :

POLARIZED HOUSING

Rated Current (Signal) :

2A

Mating Contact Pitch :

0.1 inch

Number of Positions :

16

Factory Lead Time :

7 Weeks

Style :

Board to Cable/Wire

Length - Termination :

0.114 inch

Number of Rows :

2

RoHS Status :

ROHS3 Compliant

Contact Finish - Post :

Tin

Mounting Type :

Through Hole

IEC Conformance :

yes

Feature :

Keying Slot, Mounting Flange

Termination :

Solder

Number of Positions Loaded :

All

DIN Conformance :

yes

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Number of Conductors :

ONE

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Fastening Type :

Push-Pull

Contact Finish - Mating :

Gold

Pitch - Mating :

0.100 2.54mm

Connector Type :

Header

Body Length or Diameter :

1.571 inch

Contact Type :

Male Pin

Series :

SEK

Contact Length - Post :

0.114 2.90mm

Option :

GENERAL PURPOSE

Mixed Contacts :

No

Color :

Grey

Shrouding :

Shrouded - 4 Wall

UL Flammability Code :

94V-0

Insulation Color :

Gray

Pbfree Code :

yes

MIL Conformance :

No

Contact Material :

COPPER ALLOY

Body Breadth :

0.335 inch

PCB Contact Pattern :

RECTANGULAR

Insulation Height :

0.681 17.30mm

Operating Temperature :

-55°C~125°C

Contact Finish Thickness - Mating :

30.0μin 0.76μm

Additional Feature :

STANDARDS: DIN EN 60603-13; IEC 60603-13, POLARIZED

Row Spacing - Mating :

0.100 (2.54mm)

Material Flammability Rating :

UL94 V-0

Contact Shape :

Square

Filter Feature :

No

Number Of PCB Rows :

2

Insulation Resistance :

1000000000Ohm

Body Depth :

0.681 inch

Overall Contact Length :

0.650 16.51mm

Mount :

Through Hole

Contact Length - Mating :

0.240 6.10mm

Reference Standard :

UL

Reliability :

COMMERCIAL

Packaging :

Bulk

Plating Thickness :

30μin
