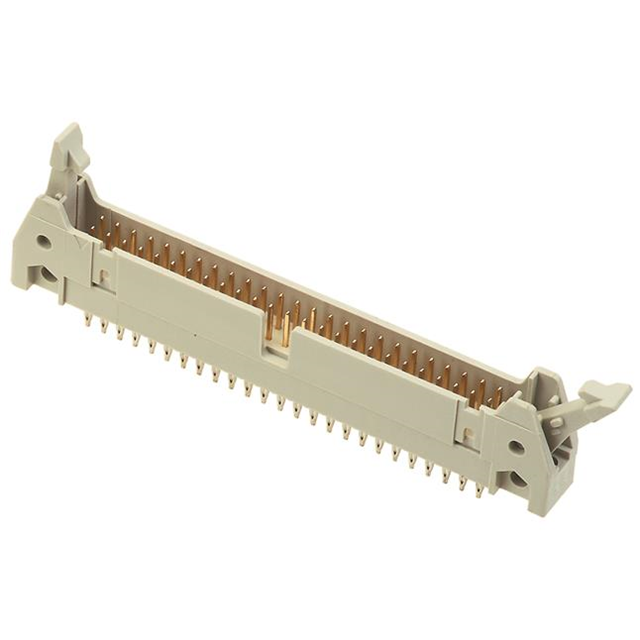

09185165909

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Connector Type :

Header

Number of Rows :

2

Contact Length - Post :

0.177 4.50mm

Option :

GENERAL PURPOSE

Feature :

Keying Slot, Mounting Flange

Number of Positions Loaded :

All

Contact Type :

Male Pin

Style :

Board to Cable/Wire

Shrouding :

Shrouded - 4 Wall

Fastening Type :

Latch Lock/Eject Hooks, Long

Series :

SEK

Packaging :

Bulk

Mounting Type :

Through Hole

Contact Finish Thickness - Mating :

30.0μin 0.76μm

Filter Feature :

No

HTS Code :

8536.69.40.40

Number of Positions :

16

Overall Contact Length :

0.713 18.10mm

Pitch - Mating :

0.100 2.54mm

Factory Lead Time :

20 Weeks

Mount :

Through Hole

Insulation Height :

0.690 17.53mm

JESD-609 Code :

e4

Row Spacing - Mating :

0.100 (2.54mm)

Orientation :

Straight

Color :

Grey

MIL Conformance :

No

Insulation Color :

Gray

Termination :

Press-Fit, Solder

Contact Finish - Mating :

Gold

Mixed Contacts :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

ECCN Code :

EAR99

RoHS Status :

ROHS3 Compliant

IEC Conformance :

No

Contact Gender :

Male

DIN Conformance :

yes

Contact Shape :

Square

Contact Length - Mating :

0.240 6.10mm

Contact Material :

Bronze

Current Rating :

2A
