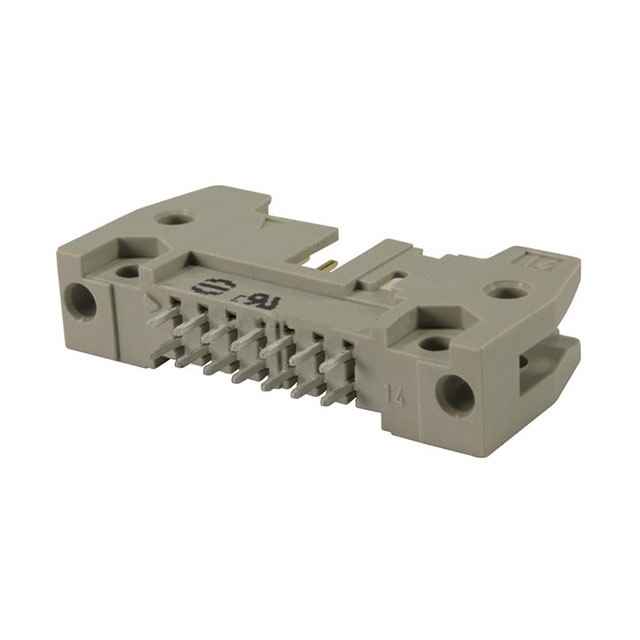

09185165902

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Contact Shape :

Square

Contact Finish - Post :

Tin

Number of Conductors :

ONE

Shrouding :

Shrouded - 4 Wall

RoHS Status :

ROHS3 Compliant

PCB Contact Pattern :

RECTANGULAR

Polarization Key :

CTR W/GUIDE SLOTS

Factory Lead Time :

7 Weeks

Reliability :

COMMERCIAL

Color :

Grey

Series :

SEK

Depth :

8.5mm

Contact Material :

COPPER ALLOY

Number of Positions :

16

Number of Positions Loaded :

All

UL Flammability Code :

94V-0

Insulation Resistance :

1000000000Ohm

Termination :

Solder

Mating Contact Pitch :

0.1 inch

Body Breadth :

0.331 inch

Contact Length - Post :

0.177 4.50mm

Mount :

Through Hole

Pbfree Code :

yes

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Overall Contact Length :

0.713 18.10mm

Number Of PCB Rows :

2

Feature :

Keying Slot, Mounting Flange

Contact Length - Mating :

0.240 6.10mm

Style :

Board to Cable/Wire

Additional Feature :

STANDARDS: DIN EN 60603-13; IEC 60603-13, POLARIZED

Mounting Type :

Through Hole

DIN Conformance :

yes

IEC Conformance :

No

Contact Type :

Male Pin

Plating Thickness :

30μin

Connector Type :

Header

Operating Temperature :

-55°C~125°C

Option :

GENERAL PURPOSE

Rated Current (Signal) :

1A

Packaging :

Bulk

Row Spacing - Mating :

0.100 (2.54mm)

Insulation Height :

0.681 17.30mm

Pitch - Mating :

0.100 2.54mm

Contact Finish Thickness - Mating :

30.0μin 0.76μm

Material Flammability Rating :

UL94 V-0

Filter Feature :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

MIL Conformance :

No

Insulation Color :

Gray

Dielectric Withstanding Voltage :

1000VAC V

Mixed Contacts :

No

Length :

39.9mm

Number of Rows :

2

Contact Finish - Mating :

Gold

Fastening Type :

Latch Lock/Eject Hooks, Long

Orientation :

Straight

Reference Standard :

UL
