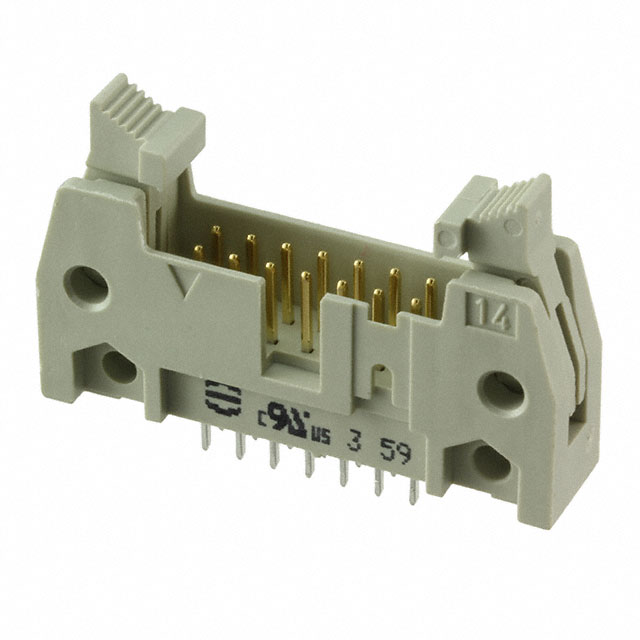

09185147914

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Reference Standard :

UL

Contact Length - Mating :

0.228 5.80mm

Shrouding :

Shrouded - 4 Wall

Voltage - Rated DC :

350V

MIL Conformance :

No

Operating Temperature :

-55°C~125°C

Insulation Color :

Gray

Number of Rows :

2

Contact Finish - Mating :

NOT SPECIFIED

Overall Contact Length :

0.650 16.51mm

Max Current Rating :

1A

PCB Contact Pattern :

RECTANGULAR

Mount :

Through Hole

Contact Shape :

Square

RoHS Status :

ROHS3 Compliant

Filter Feature :

No

Current Rating :

2A

Working Voltage :

350V

Contact Plating :

Gold

ECCN Code :

EAR99

Length :

37.4mm

Option :

GENERAL PURPOSE

Number of Conductors :

ONE

Contact Material :

COPPER ALLOY

Style :

Board to Cable/Wire

Lead Pitch :

2.54mm

Connector Type :

Header

Pbfree Code :

yes

Insulation Resistance :

1GOhm

Durability :

50 Cycles

Feature :

Keying Slot, Mounting Flange

DIN Conformance :

yes

Rated Current (Signal) :

2A

Termination :

Solder

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Mounting Type :

Through Hole

Mixed Contacts :

No

Packaging :

Tray

Contact Gender :

Male

Housing Material :

Polybutylene

Body Breadth :

0.335 inch

Color :

Grey

Insulation Height :

0.681 17.30mm

Flammability Rating :

UL94 V-0

REACH SVHC :

No SVHC

Polarization Key :

POLARIZED HOUSING

Fastening Type :

Latch Lock/Eject Hooks, Short

Voltage - Rated AC :

350V

Row Spacing - Mating :

0.100 (2.54mm)

Reliability :

COMMERCIAL

Pitch - Mating :

0.100 2.54mm

Factory Lead Time :

7 Weeks

Number Of PCB Rows :

2

Depth :

8.5mm

Contact Type :

Male Pin

Additional Feature :

STANDARDS: DIN EN 60603-13; IEC 60603-13

Contact Resistance :

20mOhm

Material Flammability Rating :

UL94 V-0

HTS Code :

8536.69.40.40

Contact Finish - Post :

Tin

Contact Length - Post :

0.114 2.90mm

Series :

SEK

Number of Poles :

14

Orientation :

Straight

Number of Positions Loaded :

All

UL Flammability Code :

94V-0

Mating Contact Pitch :

0.1 inch

IEC Conformance :

yes
