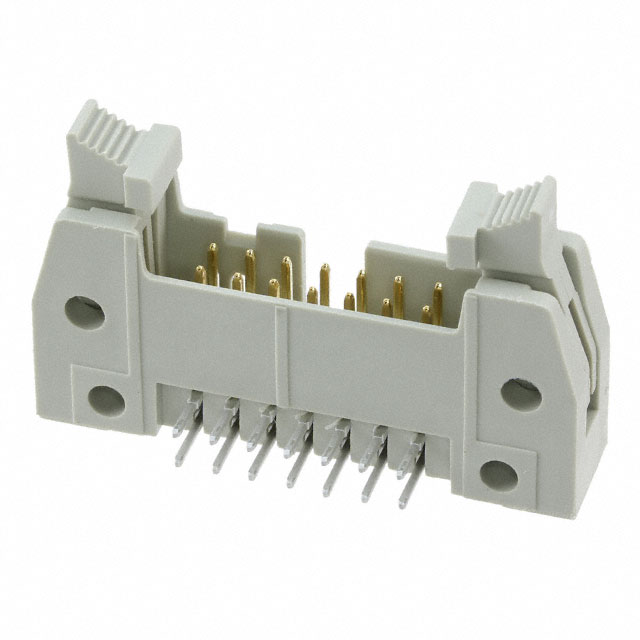

09185147913

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Contact Finish - Mating :

NOT SPECIFIED

Number of Poles :

14

MIL Conformance :

No

Contact Plating :

Gold

Mating Contact Pitch :

0.1 inch

Additional Feature :

STANDARDS: IEC 60603-13; DIN EN 60603-13

Filter Feature :

No

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Reference Standard :

UL

DIN Conformance :

yes

Contact Length - Mating :

0.240 6.10mm

Insulation Height :

0.335 8.51mm

Depth :

23.3mm

Rated Current (Signal) :

1A

PCB Contact Pattern :

RECTANGULAR

Length :

37.4mm

UL Flammability Code :

94V-0

Voltage - Rated AC :

350V

ECCN Code :

EAR99

Packaging :

Bulk

Mount :

Through Hole

Row Spacing - Mating :

0.100 (2.54mm)

Material Flammability Rating :

UL94 V-0

Insulation Color :

Gray

Working Voltage :

350V

Contact Resistance :

20mOhm

Reliability :

COMMERCIAL

Insulation Resistance :

1GOhm

Contact Gender :

Male

IEC Conformance :

yes

Series :

SEK

Current Rating :

2A

Lead Pitch :

2.54mm

Contact Shape :

Square

Pbfree Code :

yes

Mounting Type :

Through Hole, Right Angle

Operating Temperature :

-55°C~125°C

Housing Material :

Polybutylene

HTS Code :

8536.69.40.40

Durability :

50 Cycles

Number Of PCB Rows :

2

Dielectric Withstanding Voltage :

1000VAC V

RoHS Status :

ROHS3 Compliant

Mixed Contacts :

No

Number of Conductors :

ONE

Color :

Grey

Voltage - Rated DC :

350V

Contact Material :

COPPER ALLOY

Termination :

Solder

Fastening Type :

Latch Lock/Eject Hooks, Short

Connector Type :

Header

Body Breadth :

0.331 inch

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Style :

Board to Cable/Wire

Feature :

Keying Slot, Mounting Flange

Factory Lead Time :

7 Weeks

Contact Type :

Male Pin

Polarization Key :

CTR W/GUIDE SLOTS

Shrouding :

Shrouded - 4 Wall

Number of Rows :

2

REACH SVHC :

No SVHC

Number of Positions Loaded :

All

Flammability Rating :

UL94 V-0

Max Current Rating :

1A

Contact Length - Post :

0.114 2.90mm

Hole Diameter :

900 μm

Option :

GENERAL PURPOSE

Pitch - Mating :

0.100 2.54mm

Orientation :

RIGHT ANGLE
