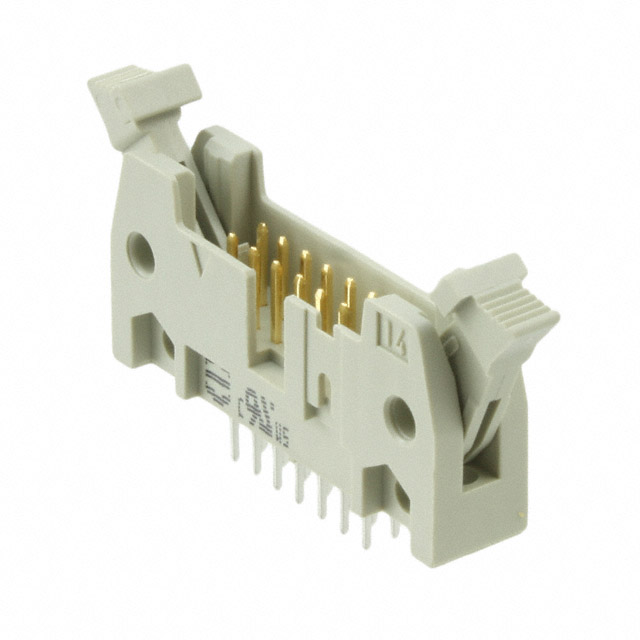

09185147912

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Number Of PCB Rows :

2

Additional Feature :

STANDARDS: DIN EN 60603-13; IEC 60603-13

Contact Plating :

Gold

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Pitch - Mating :

0.100 2.54mm

Mounting Type :

Through Hole

Rated Current (Signal) :

2A

Feature :

Keying Slot, Mounting Flange

Factory Lead Time :

7 Weeks

PCB Contact Pattern :

RECTANGULAR

Mixed Contacts :

No

Filter Feature :

No

Shrouding :

Shrouded - 4 Wall

Durability :

50 Cycles

Contact Length - Post :

0.177 4.50mm

Length - Termination :

0.177 inch

Contact Finish - Mating :

NOT SPECIFIED

DIN Conformance :

yes

Row Spacing - Mating :

0.100 (2.54mm)

MIL Conformance :

No

Insulation Height :

0.681 17.30mm

Insulation Color :

Gray

Body Breadth :

0.335 inch

Polarization Key :

POLARIZED HOUSING

UL Flammability Code :

94V-0

Operating Temperature :

-55°C~125°C

Number of Positions Loaded :

All

Termination :

Solder

Contact Finish - Post :

Tin

Connector Type :

Header

Series :

SEK

Reliability :

COMMERCIAL

Fastening Type :

Latch Lock/Eject Hooks, Short

Contact Length - Mating :

0.228 5.80mm

Number of Conductors :

ONE

Body Depth :

0.681 inch

Insulation Resistance :

1000000000Ohm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Packaging :

Bulk

Mating Contact Pitch :

0.1 inch

RoHS Status :

ROHS3 Compliant

Style :

Board to Cable/Wire

Mount :

Through Hole

Reference Standard :

UL

Number of Positions :

14

Option :

GENERAL PURPOSE

Contact Material :

COPPER ALLOY

Pbfree Code :

yes

Number of Rows :

2

Contact Type :

Male Pin

IEC Conformance :

yes

Overall Contact Length :

0.713 18.10mm

Material Flammability Rating :

UL94 V-0

Contact Shape :

Square
