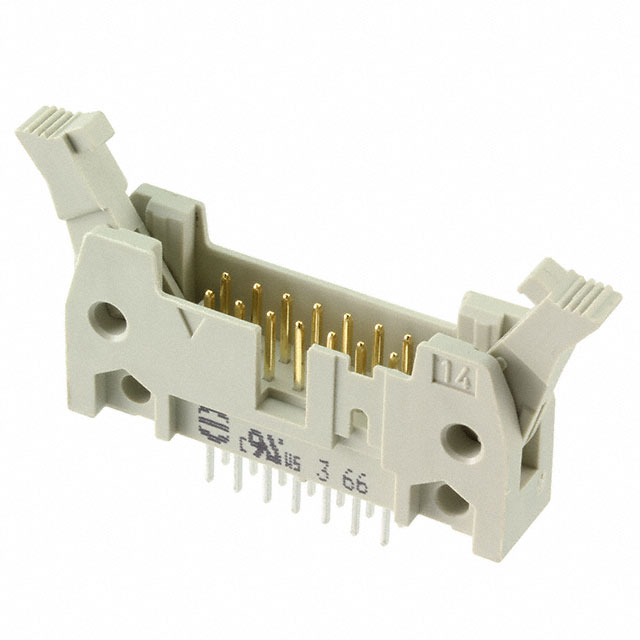

09185147902

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Dielectric Withstanding Voltage :

1000VAC V

Body Breadth :

0.331 inch

Number of Rows :

2

Durability :

50 Cycles

Row Spacing - Mating :

0.100 (2.54mm)

Number of Positions :

14

Feature :

Keying Slot, Mounting Flange

Reliability :

COMMERCIAL

Shrouding :

Shrouded - 4 Wall

Series :

SEK

PCB Contact Pattern :

RECTANGULAR

Number Of PCB Rows :

2

Body Length or Diameter :

1.984 inch

Number of Positions Loaded :

All

Option :

GENERAL PURPOSE

Rated Current (Signal) :

1A

Length - Termination :

0.177 inch

Packaging :

Bulk

DIN Conformance :

yes

Pitch - Mating :

0.100 2.54mm

Operating Temperature :

-55°C~125°C

Contact Length - Post :

0.177 4.50mm

Number of Conductors :

ONE

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Polarization Key :

CTR W/GUIDE SLOTS

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Insulation Height :

0.681 17.30mm

Body Depth :

0.681 inch

Contact Finish - Mating :

NOT SPECIFIED

Contact Finish - Post :

Tin

Mounting Type :

Through Hole

Contact Type :

Male Pin

Additional Feature :

STANDARD: IEC 60603-3

Connector Type :

Header

UL Flammability Code :

94V-0

RoHS Status :

ROHS3 Compliant

IEC Conformance :

yes

Pbfree Code :

yes

Mixed Contacts :

No

Color :

Grey

Reference Standard :

UL

Mount :

Through Hole

Insulation Resistance :

1000000000Ohm

Overall Contact Length :

0.713 18.10mm

Insulation Color :

Gray

MIL Conformance :

No

Material Flammability Rating :

UL94 V-0

Mating Contact Pitch :

0.1 inch

Factory Lead Time :

7 Weeks

Fastening Type :

Latch Lock/Eject Hooks, Long

Style :

Board to Cable/Wire

Filter Feature :

No

Termination :

Solder

Contact Shape :

Square

Contact Length - Mating :

0.240 6.10mm

Contact Material :

COPPER ALLOY
