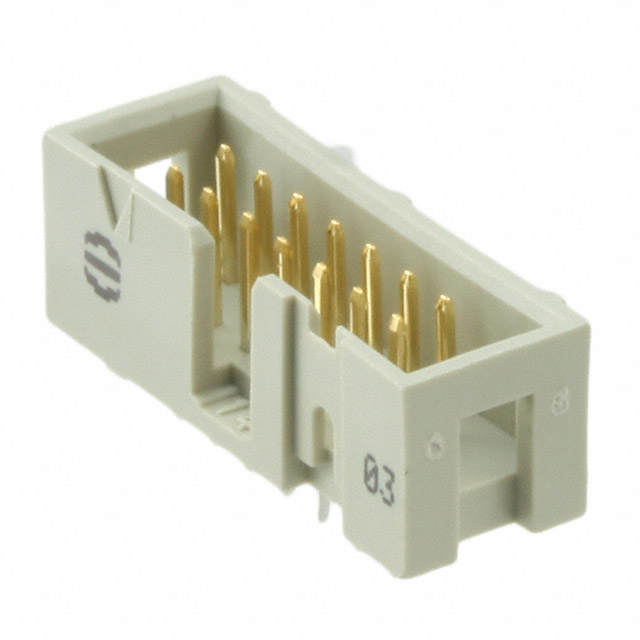

09185147324

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

IEC Conformance :

yes

Contact Resistance :

20mOhm

RoHS Status :

ROHS3 Compliant

Weight :

2.200008g

Pbfree Code :

yes

Contact Shape :

Square

Contact Finish - Post :

Tin

UL Flammability Code :

94V-0

Fastening Type :

Latch Holder

Working Voltage :

350V

Color :

Grey

DIN Conformance :

yes

Mounting Type :

Through Hole

Number of Positions Loaded :

All

Material Flammability Rating :

UL94 V-0

Operating Temperature :

-55°C~125°C

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Hole Diameter :

900 μm

Shrouding :

Shrouded - 4 Wall

Voltage - Rated AC :

350V

REACH SVHC :

No SVHC

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Termination :

Solder

Mixed Contacts :

No

Depth :

8.9mm

Contact Type :

Male Pin

Number Of PCB Rows :

2

Lead Length :

29mm

Packaging :

Tray

Reference Standard :

UL

Factory Lead Time :

4 Weeks

Mount :

Through Hole

Filter Feature :

No

Insulation Resistance :

1GOhm

PCB Contact Pattern :

RECTANGULAR

Max Current Rating :

2A

Polarization Key :

POLARIZED HOUSING

Contact Finish - Mating :

NOT SPECIFIED

Voltage - Rated DC :

350V

Feature :

Keying Slot

Number of Positions :

14

Connector Type :

Header

Style :

Board to Cable/Wire

Lead Pitch :

2.54mm

Number of Conductors :

ONE

Insulation Color :

Gray

Pitch - Mating :

0.100 2.54mm

Durability :

50 Cycles

Flammability Rating :

UL94 V-0

Contact Plating :

Gold

Current Rating :

1A

MIL Conformance :

No

Orientation :

Straight

Contact Length - Post :

0.114 2.90mm

Length :

22.94mm

Additional Feature :

STANDARD: IEC 60603-13; DIN EN 60603-13

Rated Current (Signal) :

2A

Mating Contact Pitch :

0.1 inch

Body Breadth :

0.366 inch

Insulation Height :

0.350 8.89mm

Series :

SEK

Option :

GENERAL PURPOSE

Reliability :

COMMERCIAL

Number of Rows :

2

Row Spacing - Mating :

0.100 (2.54mm)

Contact Material :

COPPER ALLOY

Contact Length - Mating :

0.240 6.10mm
