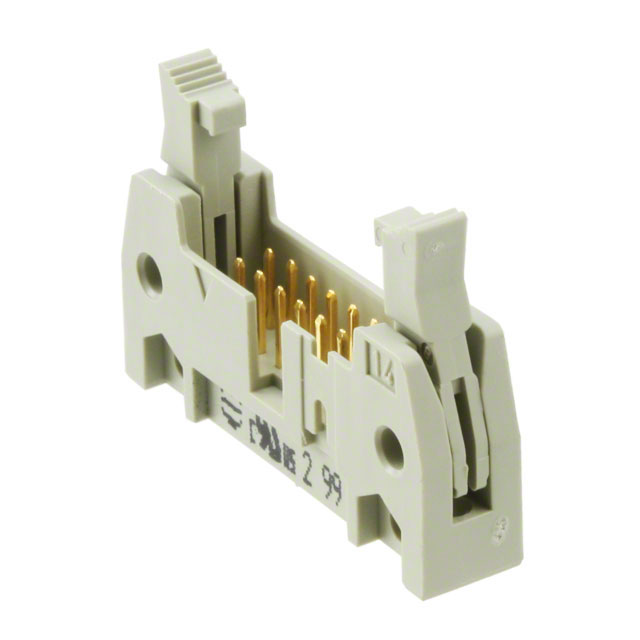

09185146903
Or copy the link below:
- Mfr.Part #
- 09185146903
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 14POS 2.54MM
- Stock
- 3,770
- In Stock ：
- 3,770
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Headers, Male Pins
- Mating Contact Pitch :
- 0.1 inch
- Contact Length - Mating :
- 0.240 6.10mm
- Color :
- Grey
- Insulation Resistance :
- 1GOhm
- Contact Material :
- COPPER ALLOY
- Contact Type :
- Male Pin
- Insulation Height :
- 0.335 8.51mm
- Insulation Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Option :
- GENERAL PURPOSE
- Pbfree Code :
- yes
- Insulation Color :
- Gray
- Contact Finish - Mating :
- NOT SPECIFIED
- Packaging :
- Bulk
- Filter Feature :
- No
- Orientation :
- RIGHT ANGLE
- IEC Conformance :
- yes
- Contact Length - Post :
- 0.114 2.90mm
- Voltage - Rated AC :
- 350V
- Number Of PCB Rows :
- 2
- Number of Poles :
- 14
- Lead Pitch :
- 2.54mm
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Material Flammability Rating :
- UL94 V-0
- ECCN Code :
- EAR99
- Operating Temperature :
- -55°C~125°C
- Style :
- Board to Cable/Wire
- Factory Lead Time :
- 4 Weeks
- Number of Conductors :
- ONE
- Number of Rows :
- 2
- Series :
- SEK
- Pitch - Mating :
- 0.100 2.54mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Current Rating :
- 2A
- Contact Shape :
- Square
- Mount :
- Through Hole
- UL Flammability Code :
- 94V-0
- Polarization Key :
- POLARIZED HOUSING
- RoHS Status :
- ROHS3 Compliant
- Additional Feature :
- STANDARDS: IEC 60603-13; DIN EN 60603-13
- Mounting Type :
- Through Hole, Right Angle
- DIN Conformance :
- yes
- Rated Current (Signal) :
- 2A
- Number of Positions Loaded :
- All
- Shrouding :
- Shrouded - 4 Wall
- Voltage - Rated DC :
- 350V
- Working Voltage :
- 350V
- Feature :
- Keying Slot, Mounting Flange
- PCB Contact Pattern :
- RECTANGULAR
- REACH SVHC :
- No SVHC
- Fastening Type :
- Latch Lock/Eject Hooks, Long
- Reliability :
- COMMERCIAL
- Contact Gender :
- Male
- Reference Standard :
- UL
- Termination :
- Solder
- Body Breadth :
- 0.335 inch
- Hole Diameter :
- 900 μm
- Flammability Rating :
- UL94 V-0
- Contact Plating :
- Gold
- Depth :
- 25.75mm
- Mixed Contacts :
- No
- Contact Current Rating :
- 1A
- HTS Code :
- 8536.69.40.40
- MIL Conformance :
- No
- Length :
- 37.4mm
- Contact Resistance :
- 20mOhm
- Connector Type :
- Header
- Datasheets
- 09185146903
SEK Series 2-Row Header Solder Copper Alloy Bulk Through Hole, Right Angle NOT SPECIFIED Polybutylene Terephthalate (PBT), Glass Filled Board to Cable/Wire 0.335 8.51mm Height
09185146903 Overview
A Header package is included with it.Its mounting type is Through Hole, Right Angle.Packaging is performed using a Bulk case.It is part of the SEK Series of products.Additionally, there are other features, such as STANDARDS: IEC 60603-13; DIN EN 60603-13.A number of features make it more powerful because of its Keying Slot, Mounting Flange feature.Through Hole mounts the part.There is no operating temperature for the device.
09185146903 Features
SEK series
09185146903 Applications
There are a lot of HARTING
09185146903 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
